Diesel engine hydraulic power pack DP22-05

for vehiclesfor automobilesfor trucks

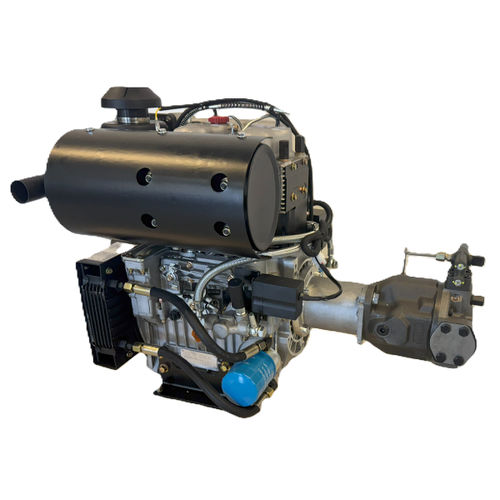

This engine/pump unit consists of a powerful 2-cylinder air-cooled diesel engine and a variable piston pump. The unit is particularly well-suited for installation on vehicle beds or other setups where the hydraulic and fuel tanks are located separately from the engine and pump. LS control and torque regulation can be added to the pump. Components Air-cooled diesel engine Variable piston pump Technical Description Engine type: 2-cylinder, 4-stroke, air-cooled Hongyang diesel engine Displacement: 997 cc Emissions standard: Stage 5 Starting system: Electric start (includes 12V charging coil) Hydraulic pump: Variable piston pump with torque regulation, 28 cc – A10VSO28DFLR Engine oil alarm: Yes Dimensions: L: 770 mm, W: 500 mm, H: 585 mm Weight (dry): 110 kg Configuration Options Optional setup and tuning to desired flow and pressure available. The Diesel Power Pack can also be customized with a larger tank, Load Sensing valves, high-pressure filter, and more.
