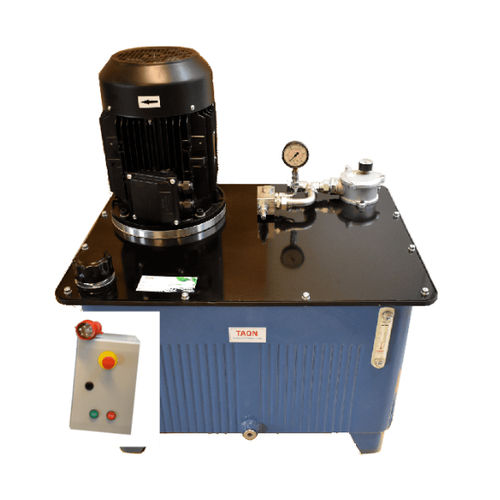

Electrically-powered hydraulic power unit HPU-17

for industrial applicationscompactstationary

This power unit is a compact and reliable stationary hydraulic system with a high/low function, combining two pump displacements for precise flow regulation. Equipped with a 5.5 kW electric motor, it delivers up to 24 l/min at low pressure (0–140 bar) and 12 l/min at high pressure (140–250 bar). It is designed for industrial environments that demand flexible performance and robust operation. The sturdy construction and fully assembled design make it ready for immediate installation and use. The power unit is equipped with a dual pump and high/low function, and can be operated on a standard 16 Amp fuse. Optionally available with additional valve setup, accumulator, and more. Technical Specifications Voltage: 400/690 V AC Pump type: Dual gear pump with high/low function Pump displacement: 8 + 8 cc/rev (1450 rpm) Return filter: 10 µm Connections: Pressure: ½″, Return: ¾″ Extras: Oil level indicator and drain plug Configuration Options At Taon Hydraulik, we offer tailor-made solutions that match your specific needs and applications. Whether you require special flow and pressure specifications, alternative tank sizes, specific valve configurations, remote control solutions, or other features, we can customize your hydraulic power unit to fit your exact task. Our experienced team is ready to advise and develop the optimal solution – from idea to finished product. Feel free to contact us for a non-binding discussion about the possibilities.
