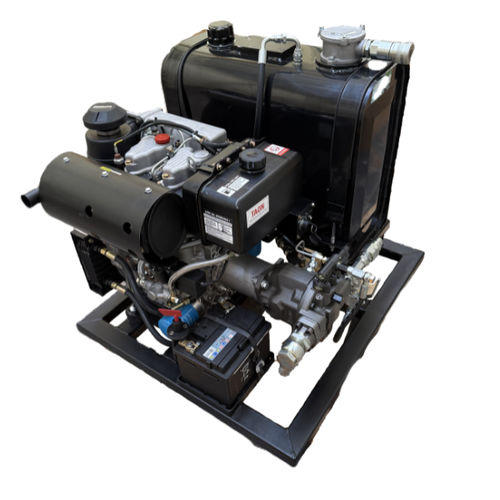

Diesel engine hydraulic power pack DP22-06

custommobile

This complete hydraulic power unit is equipped with a 14 kW, 2-cylinder, air-cooled diesel engine. The hydraulic station is ideal for (mobile) professional applications such as trucks, (underwater) operation of hydraulic tools, lifting cranes, hydraulic motors, log splitters, winches, and other hydraulic drives with the appropriate hydraulic capacity. Components: Diesel engine with electric start 45AH starter battery Variable displacement piston pump with torque control 100 L hydraulic tank All necessary connections and (quick) couplings Technical Description Engine type: 2-cylinder, 4-stroke, air-cooled Hongyang diesel engine Displacement: 997 cc Emission standard: Stage 5 Frame type: Open frame Starting system: Electric start (incl. 12V charging coil) Hydraulic pump: Variable displacement piston pump with torque control 28 cc, A10VSO28DFLR Engine oil alarm: Yes Weight without oil: 150 kg Dimensions: 900 x 800 mm, Height: 810 mm Noise level: 78 dB (approximate measurement at 1 meter distance) Connections P: ISO 16028 3/4" BSP male quick coupling Connections T: ISO 16028 3/4" BSP female quick coupling Battery: 45 Ah 12V Configuration Options It is possible to configure the diesel HPU to the desired maximum flow and oil pressure. The diesel power pack can also be customized with a larger tank, load sensing valves, high-pressure filter, and more.
