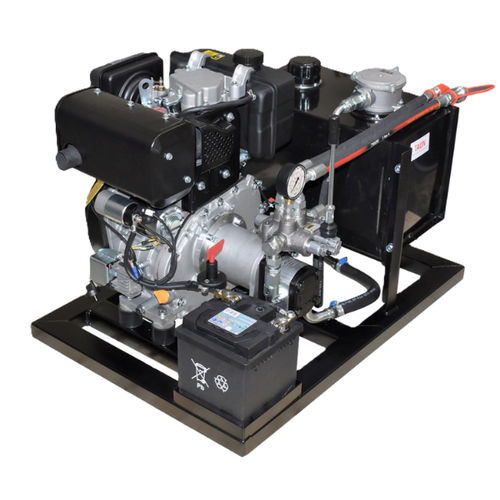

Diesel engine hydraulic power pack DP10-01

compactcustomstationary

Compact and efficient diesel-powered hydraulic power unit, ideal for operating small hydraulic tools or similar equipment. Equipped with a robust gear pump, this unit delivers reliable performance for mobile or stationary use. Available in multiple configurations to match your needs — with options for maximum pressure, flow rate, and customizable tank sizes tailored to your specific application. Components Gear pump Hydraulic tank All necessary fittings and couplings Technical Description Engine type: 1-cylinder, 4-stroke air-cooled diesel engine Displacement: 420 cc Emission standard: Stage V Starting system: Electric start (includes 12V charging coil) Hydraulic pump: Gear pump Engine oil alert: Yes Weight (without oil): 200 kg Dimensions: Length 100 cm, Height 64 cm Noise level: 78 dB (approx. measured at 1-meter distance) Connection P: ISO 7241 3/8" male BSP quick coupling Connection T: ISO 7241 3/8" female BSP quick coupling Battery: 35 Ah 12V Configuration Options The Diesel HPU can be configured to deliver the desired maximum flow and oil pressure. It is also possible to customize the Diesel Power Pack with a larger tank, load-sensing valves, high-pressure filters, and more.
