piezoresistive vacuum gauge / digital / USB / RS485

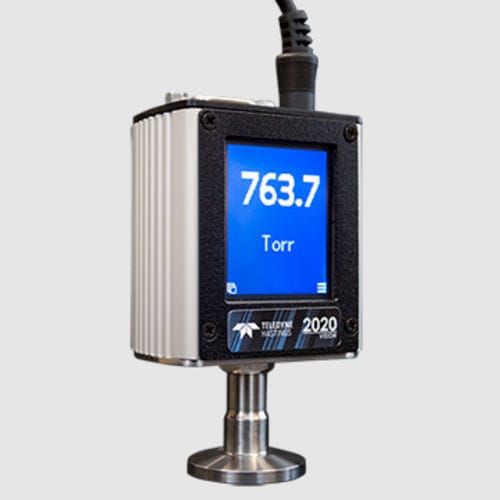

HVG-2020A Teledyne Hastings Instruments



  • Technology:


  • Display:


  • Other characteristics:

    USB, RS485, 4-20 mA, with data logger

  • Vacuum range:

    Min.: 0.1 Torr (0.001933672 psi)

    Max.: 1,000 Torr (19.33672127 psi)


The HVG-2020A vacuum gauge from Teledyne Hastings is a media-isolated, gas composition independent, piezoresistive instrument that provides accurate pressure measurement throughout the rough vacuum region.

The HVG-2020A is easy to install, and the optional display provides the users with several different views, or modes of operation. The HVG-2020A is very flexible and can provide both analog and digital output to easily integrate into process control. A wide variety of linear analog output signals may be selected. This makes the HVG-2020A an excellent choice to replace more expensive capacitance manometers. Digital output can include RS232 and RS485 via a small jack on the top of the instrument. A USB connection is also available on many models which makes connection and operation very easy. Free Windows data acquisition software for data logging is available for the HVG-2020A.
