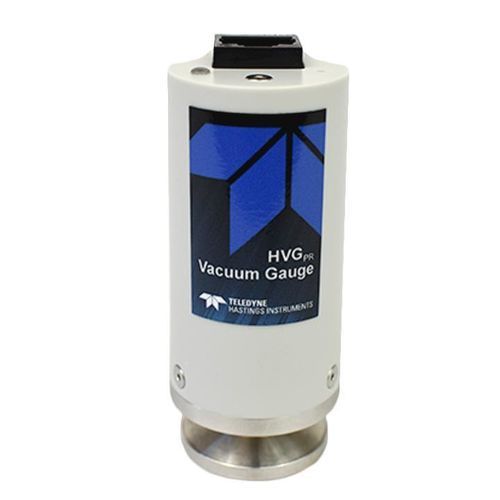

Pirani vacuum gauge HVG-PR

without displayRS485compact

Overview
The HVG-PR Pirani thermal vacuum gauge measures pressure from atmosphere down to 0.1 mTorr (1.3 x 10-4 mbar / 1.3 x 10-2 Pa). It uses the same precision Pirani sensor technology as the HVG-2020B and is supplied in a compact, cost-efficient package suited to OEM use, system integration and process automation.

Key features

• Measurement range: atmosphere to 0.1 mTorr (1.3 x 10-4 mbar / 1.3 x 10-2 Pa)
• Precision Pirani thermal sensor (same sensor technology as HVG-2020B)
• Available process connections: KF-16 flange or 1/8" MNPT
• Analog output options (logarithmic): 1 V/decade (2–9 VDC) or 1.286 V/decade (1.16–10.162 V)
• RS-485 digital communication (standard)
• Power, analog and digital signals delivered through a single RJ45 connector
• Top-panel status LED for quick pressure indication
• Compact form factor for OEM and process integration

Mechanical and electrical connections

• Process connections: KF-16 flange or 1/8" MNPT
• Interface: single RJ45 connector carrying power, analog output and RS-485
• Analog output versions: 1 V/decade (2–9 VDC) or 1.286 V/decade (1.16–10.162 V)

Applications and industries

• Analytical instrumentation
• Foreline monitoring
• Glass coating
• Thin film deposition
• Semiconductor processing
• Freeze drying
• Vacuum furnace / heat treat
• HVAC & ice machinery
• Oil reprocessing

Downloads

• Product bulletin (HVG-PR Product Bulletin)
• Instruction manual
• Quick start guide

Technical specifications

• Model: HVG-PR
• Pressure range: atmosphere to 0.1 mTorr (1.3 x 10-4 mbar / 1.3 x 10-2 Pa)
• Sensor type: Pirani thermal sensor (precision sensor as in HVG-2020B)
• Connections: KF-16 flange or 1/8" MNPT
• Analog outputs: 1 V/decade (2–9 VDC) or 1.286 V/decade (1.16–10.162 V)
• Digital communication: RS-485 (standard)
• Interface/connector: single RJ45 for power, analog and digital signals
• Indicator: top-panel status LED
• Typical use: OEM integration, system integration, process automation
