Cone crusher C-1550P

mobilehigh-capacitycrawler

Overview

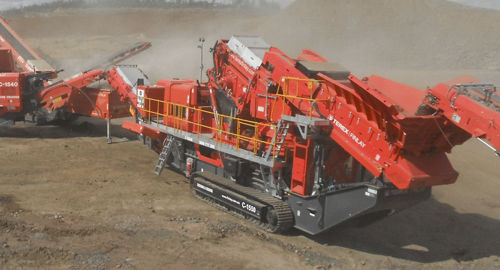

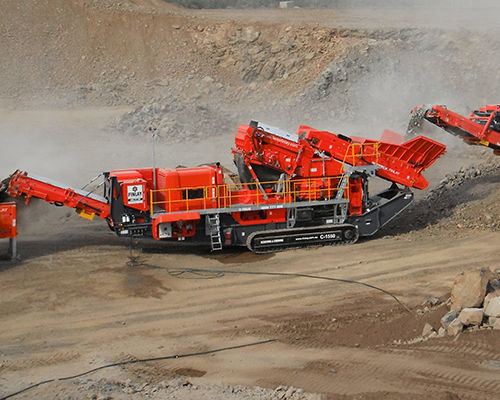

The Finlay C-1550P is a self-propelled mobile cone crushing plant built around the proven Finlay 1300 cone crusher with direct drive. The machine offers an optional patent-pending single-deck pre-screen (2.45 x 1.52 m) to remove or bypass fines, an integrated chute system to divert or reintroduce fines, and telematics (T-Link) as standard on applicable units.

Design & Operation

• Tracked, self-propelled cone plant with large hopper/feeder and automated metal detection plus purge chute to protect the cone and reduce downtime.
• Optional pre-screen module (single deck 2.45 m x 1.52 m) to remove fines before the cone chamber.
• Hydraulically adjustable feed conveyor for operation with pre-screen or direct feed to the cone.
• Fuel-efficient direct drive transmission via wet clutch with variable speed cone drive and electronic monitoring.
• Hydraulic tramp relief system with automatic reset for chamber protection.
• Integrated chute system enabling bypass or reintroduction of fines to optimise throughput and reduce liner wear.
• Dust suppression provision fitted as standard (hose and spraybars; pump not supplied).

Key Features

• Fully hydraulic Closed Side Setting (CSS) adjustment with electronic monitoring for on-the-fly change.
• Fuel-efficient direct drive through wet clutch.
• Hydraulic tramp relief with automatic reset to minimise downtime and protect the chamber.
• Metal detection on feed belt with auto-stop and controllable purge system for removal of metal contaminants.
• Pre-screen bypass or reintroduction options to improve product control, plant throughput and liner life.

Modules & Components

• Hopper / Feeder: large-capacity hopper with automated metal detection and purge; optional hopper extensions available.
• Main conveyor: 1.2 m belt, impact bars and wear-resistant liners at feed point, full-length skirting, stockpile level sensor; discharge height approx. 3.8 m; stockpile ~81.6 m³ @ 40°.
• Pre-screen side conveyor: hydraulically folding side conveyor for fines removal/discharge; side conveyor belt width 650 mm.
• Cone crusher: Terex 1300 cone chamber (1300 mm / 52") with mantle/concave wear indicators; medium-coarse concave configuration; CSS adjustable during operation (min 24 mm — max 44 mm).
• Undercarriage: robust tracked undercarriage; track shoe width 500 mm, tracking speed ~1.1 km/h, gradeability ~25°.

Telematics
T-Link telematics hardware and software are fitted as standard on applicable machines to provide remote monitoring and machine performance data (subscription terms apply).

Technical specifications

• Model: C-1550P
• Brand: Finlay
• Cone head diameter: 1300 mm (52")
• Net engine power: Tier 3 — Cat C15 522 hp (390 kW) or Tier 4F/Stage IV — Scania 500 hp (368 kW) (model-dependent)
• Transport weight: approx. 64,820 kg (142,903 lbs)
• Transport dimensions (L x W x H): approx. 18.3 m x 3.0 m x 3.8 m
• Working dimensions (L x W x H): approx. 19.25 m x 7.1 m x 6.0 m
• Pre-screen top deck: 2.45 m x 1.52 m, screen angle ~23°
• Pre-screen side conveyor: belt width 650 mm, discharge height ~2.8 m, stockpile capacity 32.6 m³ @ 40°
• Main conveyor: belt width 1.2 m, discharge height ~3.8 m, stockpile capacity ~81.6 m³ @ 40°
• Hopper capacity: approx. 8 m³ (rear width 2.5 m; with extensions up to 4.16 m)
• CSS range: min 24 mm (15/16") — max 44 mm (1 3/4")
• Standard inclusions: metal detection and purge system on feedbelt, dust suppression provision, T-Link telematics (where fitted).
