Cone crushing and screening plant C-1540RS

mobilecrawler

Product overview

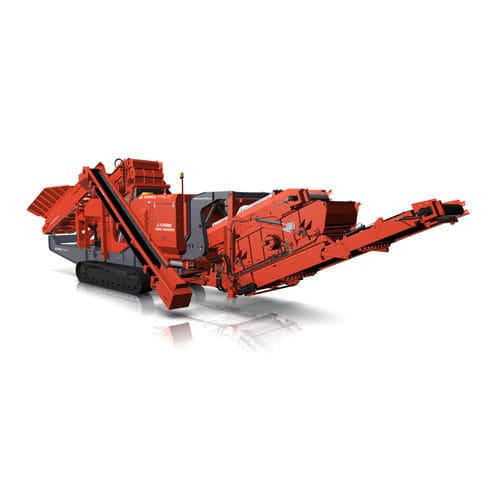

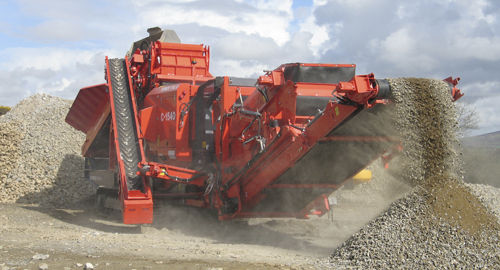

The Finlay C-1540RS tracked cone crusher provides combined crushing and sizing on a single tracked chassis. Based on the Finlay C-1540, this variant includes an on-board recirculating conveyor and a detachable double-deck sizing screen that can be removed quickly without lifting equipment for open-circuit operation.

Key features

• Detachable 12’ x 5’ (3.66 m x 1.52 m) double-deck sizing screen returns oversize material to the crusher via the on-board recirculating conveyor.
• Quick-detachable screen and fines conveyor for fast conversion to open circuit crushing.
• Optional mid-grade conveyor combined with optional lower deck screen produces a second specification product.

Hopper / feeder

• Hopper capacity: 5 m³ (6.5 yd³)
• Hopper width at rear: 2.45 m (8’); with optional extensions: 3.7 m (12’ 2”)
• Working angle: 24° (pre-screen feed), 21° (direct feed)
• Drop-down rear door for auxiliary crusher feed
• Crash bar fitted to reduce impact load on feed conveyor

Pre-screen module

• Top deck: 1.83 m x 1.22 m (6’ x 4’)
• Removes fines before the cone chamber to maximise production and reduce wear

Fines conveyor

• Belt width: 1.4 m (55”)
• Working angle: 19°–22°
• Hydraulically folds for transport
• Discharge height: 3.0 m (9’10”)
• Stockpile capacity: 44.3 m³ (58 yd³) @ 40°

Screenbox

• Top deck: 3.66 m x 1.53 m (12’ x 5’)
• Bottom deck: 3.05 m x 1.53 m (10’ x 5’)
• Total screening area: 10.1 m² (110 ft²)
• Screen angle: 19°–22°

Re-circulating conveyor

• Belt width: 500 mm (20”)
• Belt specification: Chevron
• Working angle: 30°
• Hydraulically folds for transport

Cone chamber

• Terex® 1000 mm (40”) cone chamber
• Variable speed control settings for producing specified aggregate
• Hydraulically adjustable closed side setting with monitoring system

Undercarriage

• Shoe width: 500 mm (20”)
• Tracking speed: 0.9 km/h
• Gradeability: 25°

Detachable screenbox

• Quick and easy detachment of screen and fines conveyor for open-circuit crushing
• Optional stacking conveyor and lower deck screen produce a second product to specification

T-Link Telematics (machine telematics & monitoring)

• Remote plant monitoring: location and machine status
• Provides operational data and reports to assist remote optimisation of plant performance
• Fitted to Terex Finlay crushers with electronic engines since 2016 and to screeners since 2017

Technical specifications

• Net engine power: Tier 3 - CAT 440 hp / Tier 4F / Stage IV - Scania 450 hp (Tier 3 - CAT 328 kW | Tier 4 Final / Stage V - Scania 331 kW)
• Cone head diameter: 1000 mm (40”)
• Transport weight: 112,700 lbs / 51,120 kg
• Transport dimensions: Height 3.5 m | Width 3.1 m | Length 18.76 m
• Working dimensions: Height 4.75 m | Width 4.7 m | Length 19 m
