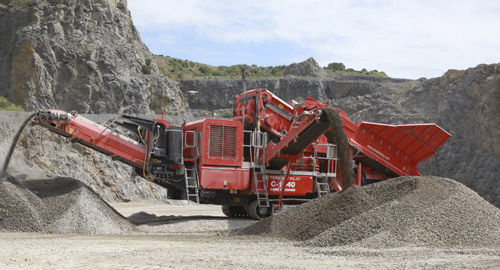

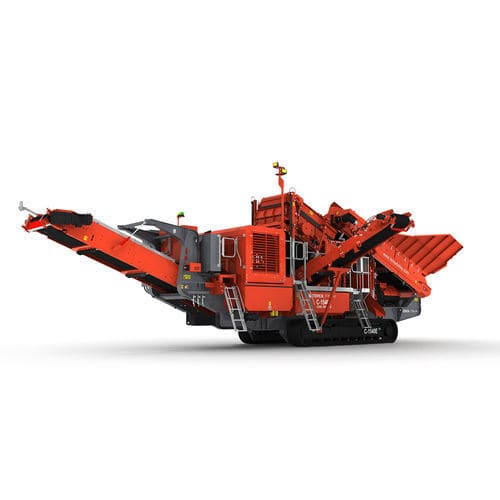

Hydraulic cone crusher C-1540 Hybrid

mobilehigh-capacitycrawler

Overview
The Finlay® C-1540 Hybrid is a tracked, mobile dual‑power cone crusher providing flexible site power options: mains electric connection or onboard genset powerpack. The machine integrates the proven Terex® 1000 cone chamber with direct electric drive, automatic tramp relief and hydraulic Closed Side Setting (CSS) adjustment for on‑the‑move regulation.

Key features

• Dual‑power capability: operate via mains electric supply or onboard generator for site flexibility and reduced operating costs.
• Terex 1000 cone with direct electric drive, automatic tramp release and hydraulic CSS adjustment.
• Optional patented pre‑screen module to bypass fines prior to the crushing chamber, reducing chamber wear.
• Automated metal detection on the feed belt with auto‑stop and purge chute to remove metal contaminants and reduce downtime.
• Rapid setup, simplified maintenance, high reduction ratio and advanced electronic control.

Telematics

• T‑Link telematics hardware and software supplied as standard with a seven‑year free data subscription for remote monitoring and performance data access.

Cone chamber

• Terex 1000 (40") cone chamber.
• Countershaft speed range: 840–940 rpm.
• Five cone head speed settings to produce different aggregate gradings.
• Hydraulic on‑the‑move CSS adjustment with monitoring.

Hopper / feeder

• Hopper capacity: 5 m³ (6.5 yd³).
• Rear hopper width: 2.45 m (8').
• Feeder belt width: 1.05 m (42").
• Working angle: 24° (prescreen feed) / 21° (direct feed).
• Drop‑down rear door for auxiliary crusher feed and crash bars to reduce impact load on the feeder conveyor.

Main conveyor

• Belt width: 900 mm (36").
• Discharge height: 3.3 m (10'10").
• Impact bars and wear‑resistant liners at the feed point.
• Dust suppression provision: hose and spray bars supplied as standard (pump not supplied).
• Standard stockpile capacity: 53.5 m³ (70 yd³) @ 40°.

Pre‑screen (optional)

• Top deck: 1.83 m x 1.22 m (6' x 4').
• Module maximizes production and reduces chamber wear by removing fines before they enter the cone.

Metal purge chute

• Feed belt metal detector with auto‑stop protects the cone; purge chute ejects contaminants from the machine to reduce downtime.

Undercarriage / mobility

• Shoe width: 500 mm (20").
• Transit speed: approx. 1.1 km/h.
• Gradeability: approx. 25%.

Hybrid powerpack

• Plant electric drive systems deliver cost and efficiency benefits; unit can run from site mains or onboard generator depending on site requirements.

Technical specifications

• Net engine power (Tier 2 / Stage II equivalent): Scania DC09 350 hp / 257 kW.
• Net engine power (Stage IIIA constant speed): Scania DC09 365 hp / 273 kW.
• Net engine power (Tier 4F / Stage IV): Scania DC09 350 hp / 257 kW.
• Cone head diameter: 1000 mm (40").
• Transport weight: 99,914 lbs / 45,320 kg.
• Hopper capacity: 5 m³ (6.5 yd³).
• Feeder belt width: 1.05 m (42").
• Main conveyor width: 900 mm (36"); discharge height: 3.3 m (10'10").
• Standard stockpile capacity: 53.5 m³ (70 yd³) @ 40°.
• Countershaft speed range: 840–940 rpm.
• Number of cone head speed settings: 5.
• Pre‑screen top deck: 1.83 m x 1.22 m (6' x 4').
• Undercarriage shoe width: 500 mm (20").
• Transit speed: approx. 1.1 km/h; gradeability: approx. 25%.
