Cone crusher C-1545

mobilehigh-capacitycrawler

Product overview

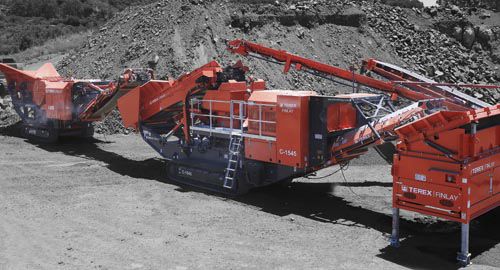

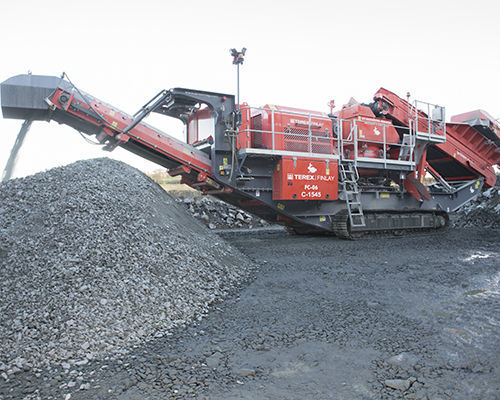

The Finlay C-1545 is a mobile cone crusher built around the Finlay 1150 (1150 mm / 45 in) cone chamber. It provides high output capacity and a cubical product and is designed for rapid set up, simple maintenance and reliable on-site mobility. The unit features a direct clutch drive with variable speed, automatic tramp relief and hydraulic closed side setting (CSS) adjustment. A large hopper/feeder with metal detection and a purge chute protects the cone and reduces downtime.

Key features

• Direct clutch drive for fuel-efficient transmission and reliable power transfer.
• Hydraulic tramp relief with automatic reset to protect the cone chamber and reduce interruptions.
• Feed belt metal detection with auto-stop and purge chute to remove tramp metal before it reaches the cone.
• Variable speed cone control to optimise product quality and throughput.
• T-Link telematics fitted for remote monitoring and fleet management.

Hopper / feeder

• Hopper capacity: 6 m³ (7.8 yd³).
• Feed height: 3.0 m (9'10") — with optional hopper extensions: 3.22 m (10'7").
• Hopper width at rear: 2.27 m (7'5") — with optional extensions: 4.12 m (13'6").

Metal purge system

• Feed belt metal detection with automatic stop and a purge chute to remove contaminants and protect the cone chamber.

Cone chamber

• Finlay 1150 cone chamber (1150 mm / 45 in) with hydraulic CSS adjustment and mantle/concave wear indicators.
• Variable speed control and direct clutch drive for consistent product shape and throughput control.

Main conveyor

• Main discharge conveyor: 1.0 m (40 in) belt width; discharge height approx. 3.26 m (10'8").

Undercarriage / tracked chassis

• Track shoe width: 500 mm (20 in).
• Travel speed approx. 1.1 km/h; gradeability ~25°.

Telematics

• T-Link telematics for remote location, status and utilisation reporting (monitoring and diagnostics).

Technical specifications

• Net engine power: Tier 3 — Caterpillar C13 Acert 440 hp (328 kW) or Tier 4F/Stage IV — Scania DC13 450 hp (331 kW) depending on configuration.
• Cone head diameter: 1150 mm (45 in).
• Transport weight: approx. 43,440 kg (95,769 lbs) (configuration dependent).
• Transport dimensions (approx.): H 3.6 m × W 3.0 m × L 16.9 m.
• Working dimensions (approx.): H 4.7 m × W 4.4 m × L 16.4 m.
• Hopper capacity: 6 m³ (7.8 yd³).
• Main conveyor belt width: 1.0 m (40 in).
• Undercarriage shoe width: 500 mm (20 in); tracking speed ~1.1 km/h; gradeability ~25°.
