Hydraulic cone crusher C-1540P

mobilecrawlerhigh-capacity

Product overview

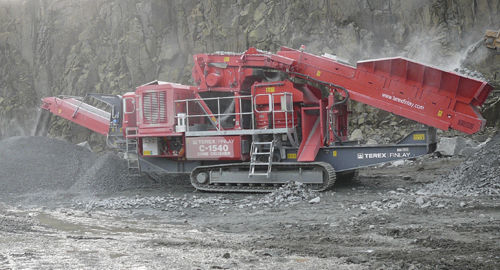

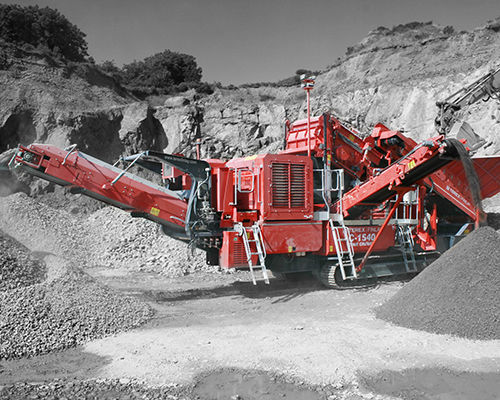

The Finlay C-1540P tracked mobile cone crusher is engineered for aggregate and surface mining applications. It combines a Terex 1000 (1000 mm / 40") cone chamber with direct variable hydrostatic drive, automatic tramp relief and hydraulically adjustable closed-side setting (CSS). An optional patented pre-screen module can bypass fines before the crushing chamber to improve chamber wear life. The large hopper/feeder features metal detection with automatic stop and a controllable purge chute to remove metal contaminants and protect the cone.

Key features

• Direct hydrostatic cone drive with variable speed control for consistent product shape and efficient production.
• Optional pre-screen module to divert fines prior to the cone, maximising throughput and reducing chamber wear.
• Feed-belt metal detection with auto-stop and purge chute to protect the cone and reduce downtime.
• Hydraulically adjustable CSS with monitoring for on-the-fly setting changes; multiple cone head speed settings.
• On-board T-Link telematics for remote monitoring and data reporting.

Hopper & feeder

• Hopper capacity: 5 m³ (6.5 yd³).
• Width at rear: 2.45 m (8').
• Feed belt width: 1.05 m (42').
• Working angle: 24° (pre-screen feed) / 21° (direct feed).
• Drop-down rear door for auxiliary crusher feed and crash bar to reduce impact load on the feed conveyor.

Pre-screen module (optional)

• Top deck: 1.83 m x 1.22 m (6' x 4').
• Removes fines before the cone chamber to maximise production and reduce wear.

Cone chamber

• Terex 1000 cone chamber: cone head diameter 1000 mm (40").
• Cone countershaft speed range: 840–940 rpm; five cone head speed control settings.
• Hydraulically adjustable closed-side setting (CSS) with monitoring for on-the-fly adjustments.

Metal purge

• Feed belt metal detector with automatic stop protects the cone; controllable purge system removes contaminants via the purge chute.

Undercarriage

• Shoe width: 500 mm (20").
• Tracking speed: approx. 1.1 km/h.
• Gradeability: up to 25°.

Main conveyor

• Belt width: 900 mm (36").
• Discharge height: 3.3 m (10'10").
• Impact bars and wear-resistant liners at the feed point; dust suppression fitted with hose and spraybars as standard (pump not supplied).
• Standard stockpile capacity: approx. 53.5 m³ (70 yd³) at 40°.

T-Link Telematics

• On-board telematics hardware and software with multi-year data subscription provided as standard for remote location and status monitoring.

Technical specifications

• Net engine power: Tier 3 - Cat 350 hp | Tier 4F/Stage IV - Scania 350 hp (examples, see manufacturer data).
• Cone head diameter: 1000 mm (40").
• Transport weight: approx. 88,670 lbs / 40,220 kg (manufacturer dependent).
• Transport dimensions: height 3.45 m | width 2.6 m | length 16.9 m (example figures).
• Working dimensions: height 4.75 m | width 3.72 m | length 15.79 m (example figures).
• Hopper capacity: 5 m³ (6.5 yd³).
• Pre-screen top deck: 1.83 m x 1.22 m (6' x 4').
• Main conveyor: belt 900 mm (36"); discharge height 3.3 m (10'10").
• Undercarriage: shoe width 500 mm (20"); tracking speed ~1.1 km/h; gradeability 25°.
• Cone chamber details: Terex 1000 mm cone; speed range 840–940 rpm; hydraulically adjustable CSS with monitoring.
