Cone crusher C-1550

mobilehigh-capacitycrawler

Product overview

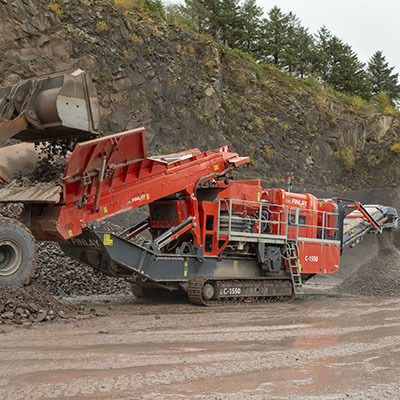

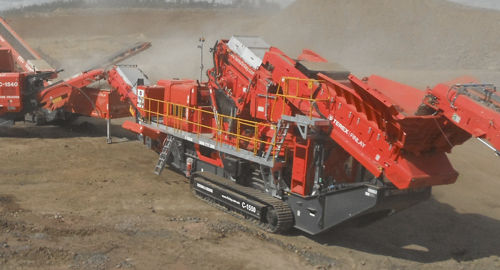

The Finlay C-1550 is a tracked mobile cone crusher designed for high-capacity surface mining and aggregate production. It integrates the proven 1300 mm cone chamber with a direct variable-clutch drive, hydraulic closed-side setting (CSS) and an automatic tramp-relief system to protect the chamber and reduce downtime.

Key features

• Hydraulic CSS adjustment with electronic monitoring for accurate, on-the-move settings.
• Fuel-efficient direct drive via wet clutch for reduced power loss.
• Hydraulic tramp-relief with automatic reset to protect the cone chamber.
• Automated metal detection on the feed belt with auto-stop and purge chute to remove contaminants.

Hopper / feeder

• Hopper capacity: 8 m³ (10.4 yd³).
• Feed height: 3.3 m (10'10"), with optional extensions up to 3.7 m (12'2").
• Rear hopper width: 2.5 m (8'2"), extendable to 4.16 m (13'8").

Main conveyor

• Belt width: 1.2 m (48").
• Belt type: plain.
• Discharge height: approx. 3.55 m (11'8").

Cone chamber

• Cone head diameter: 1300 mm (51"/52" nominal).
• Cone speed range: approx. 690–760 rpm (application dependent).
• Drive arrangement: direct drive via clutch and V-belts.
• Wear indicators for mantle/concave; variable speed control to optimise product gradation.

Undercarriage

• Shoe width: 500 mm (20").
• Sprocket centres: 3.80 m (12'6").
• Tracking speed: approx. 1.1–1.2 km/h.
• Gradeability: up to 25°.

Metal detection & purge

• Feed-belt metal detection with auto-stop protects the cone from tramp metal.
• Purge chute removes metallic contaminants to minimise damage and downtime.

T-Link telematics

• On-board T-Link telematics for remote monitoring of machine location and operating status.
• Factory-fitted hardware and software; manufacturer data subscription included per specification.

Technical specifications (indicative)

• Net engine options: Caterpillar C15 Acert ~522 hp (390 kW) or Scania DC13 ~500 hp (368 kW) depending on regional configuration.
• Transport weight (approx.): 56,500 kg (124,561 lbs).
• Transport dimensions (approx.): H 3.8 m × W 3.0 m × L 17.92 m.
• Working dimensions (approx.): H 4.89 m × W 3.92 m × L 16.8 m.
• Typical applications: surface ore mining, quarry and aggregate production.
