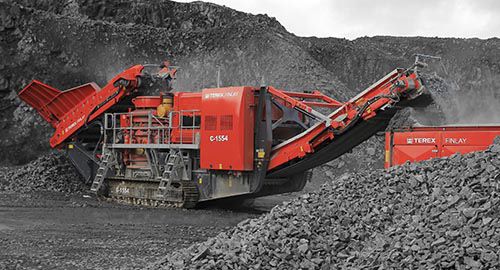

Cone crusher C-1554

mobilecrawler

Product Overview

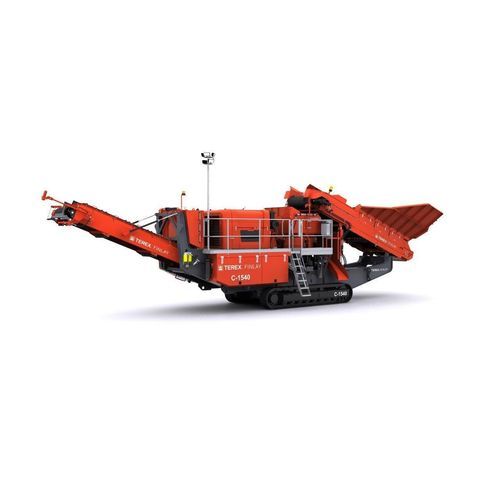

The fuel-efficient direct drive mobile cone crusher C-1540 is designed for medium-sized producers and contract crushing operators. The unit integrates the proven Terex 1000 cone chamber with choke feed using an integrated level sensor, automatic tramp relief and hydraulic closed side setting (CSS) adjustment. A large hopper/feeder includes automated metal detection and a purge chute to remove metal contaminants and protect the cone, reducing downtime. Other advantages include rapid setup, straightforward maintenance, high reduction ratio, high output capacity and an advanced electronic control system.

Key Features

• Direct drive transmission via clutch for fuel-efficient operation.
• Hydraulic tramp relief with automatic reset to protect the chamber and minimise downtime.
• Metal detection on the feed belt with auto-stop and purge chute to remove contaminants.
• Advanced load-sensing auxiliary hydraulics to maximise plant efficiency.
• Rapid set-up time and ease of maintenance.

Hopper and Feeder

• Hopper capacity: 5 m³ (6.5 yd³).
• Feed height: 2.8 m (9'2").
• Rear hopper width: 2.1 m (6'10").
• Impact bar fitted to reduce impact load on the feed conveyor.
• Drop-down rear door for auxiliary crusher feed.
• Automated metal detection and purge system to remove tramp metal.

Cone Chamber

• Terex 1000 cone chamber (1000 mm / 40").
• Cone countershaft speed range (indicative): ~915–1010 rpm.
• Variable speed control for consistent product quality.
• Hydraulic on-the-fly CSS adjustment with monitoring system.

Main Conveyor

• Belt width: 900 mm (36").
• Working angle: approx. 21°.
• Impact bars and wear-resistant liners at the feed point.
• Discharge height: approx. 3.3 m (10'10").
• Standard stockpile capacity: ~53.5 m³ (70 yd³) @ 40°.

Undercarriage

• Track shoe width: 400 mm (16").
• Travel speed: approx. 1.3 km/h.
• Gradeability: approx. 25°.

Metal Detection and Purge System
The feed belt metal detection with auto-stop protects the cone from tramp metal. The purge chute removes metal contaminants from the machine to reduce damage and downtime.

Telematics

• T-Link telematics hardware and software supplied as standard.
• Free data subscription included for a defined period (factory fit standard).

Technical Specifications

• Model: C-1540
• Cone head diameter: 1000 mm (40").
• Net engine power (examples): Tier 3 - CAT 261 kW; Tier 4F/Stage IV - Scania 257 kW.
• Transport weight: approx. 33,350 kg (73,524 lbs).
• Transport dimensions (approx.): H 3.45 m × W 2.75 m × L 15.55 m.
• Working dimensions (approx.): H 4.35 m × W 3.9 m × L 14.9 m.
• Hopper capacity: 5 m³.
• Main conveyor belt width: 900 mm.
• Discharge height (main conveyor): 3.3 m.
• Standard stockpile capacity: ~53.5 m³ (@40°).
• Undercarriage track shoe width: 400 mm; travel speed ~1.3 km/h; gradeability ~25°.
• Drive system: direct drive via clutch.
• Protection systems: metal detection with auto-stop and purge chute; hydraulic tramp relief with auto-reset.
