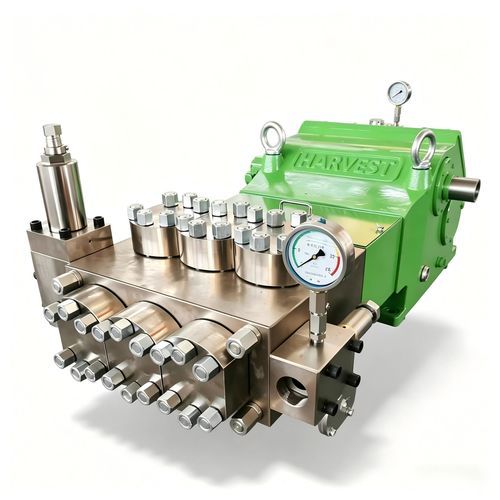

Plunger pump K20000waterfor chemicalselectric
Add to favorites
Compare this product
Characteristics
- Technology
- plunger
- Fluid
- water, for chemicals
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for water treatment, for the petrochemical industry, for the mining industry, for the metallurgical industry, for maritime applications, for the construction industry
- Applications
- transfer, discharge, high-pressure, sewage, cleaning, washing, injection, dredging, high-pressure cleaning, descaling, test, for tube and pipe cleaning, for water-jet cutting
- Material
- stainless steel, cast iron, steel
- Fluid specification
- for low-viscosity fluids
- Voltage
- 380-415V, 240 V, 460 V
- Protection level
- standard
- Other characteristics
- high-performance, OEM, high-flow
- Flow
Min.: 9.3 m³/h
(328.4264 ft³/h)Max.: 37.2 m³/h
(1,313.7056 ft³/h)- Pressure
Min.: 8 MPa
Max.: 35 MPa
- Power
Min.: 110 kW
(149.56 hp)Max.: 200 kW
(271.92 hp)- Fluid temperature
Min.: 0 °C
(32 °F)Max.: 180 °C
(356 °F)- Length
1,448 mm
(57.008 in)- Width
800 mm
(31.5 in)- Height
600 mm
(23.62 in)
Description
high-pressure pumps are high-flow plunger pumps that absorb the technology of imported products and use finite element to check carefully. The liquid ends can be equipped with a valve disc structure or a conical valve structure into the liquid discharge valve group to meet different working conditions.
Application industry: metallurgical descaling, large-scale pipeline pressure test, oilfield water injection, coal seam water injection, etc.
