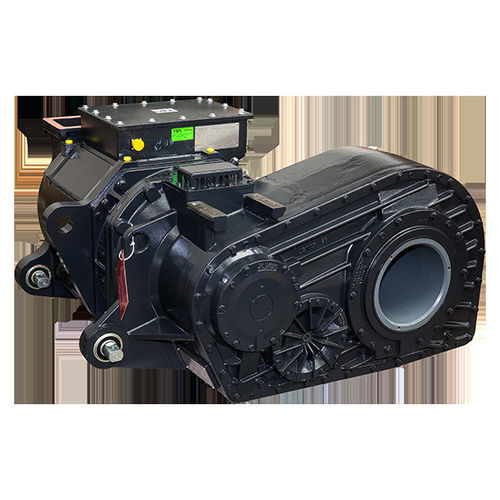

Asynchronous railway traction motor TSA005702R1

ACair-cooledsuspended

The TSA Traction Drive is designed for Stadler Rail GTW DMUs, specifically for eBART and FGC (Ferrocarrils de la Generalitat de Catalunya). This product is utilized in Spain and the United States.Technical Specifications Motor:Model: TSA005702R1Power (P): 300 kWSpeed (n): 2225 minVoltage (U): 500 VCurrent (I): 406 AFrequency (f): 75 HzFlow (Q): -0.8 m/sTechnical Specifications Gearbox:Gearbox type and drive setup: Double reduction helical gearbox for semi suspended drive, gear case with side coverMotor/Gearbox connection: Membrane couplingGearbox/Wheel-set connection: Rubber wedge coupling (single plane)Gear ratio: 5.46Additional Specifications:Axle load: 21.0 tWheel diameter new/worn: 870/800 mmMax. operating speed of vehicle: 140 km/hMax. starting effort: 40.0 kNNominal power: 300 kWTotal weight incl. couplings: 700 kgSuitable for traction motor: TMF 50-29-4The design features air-cooled, forced ventilation, and an open design with an IP6K9K protection rating.
