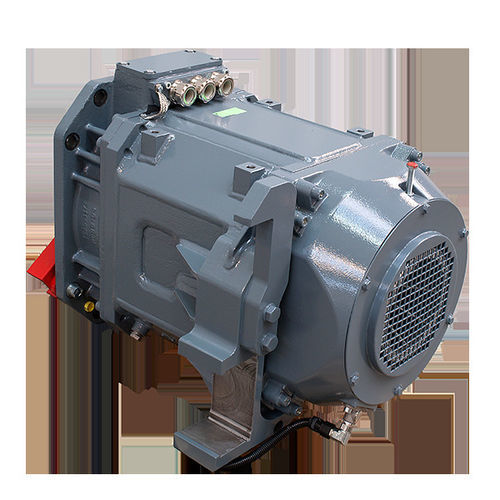

Asynchronous railway traction motor TMR 36-30-4

ACair-cooled

The CNR Tangshan DMU for Ghana Railway Corporation is equipped with a traction motor model TMR 36-30-4. This motor is air-cooled, features a closed design, and is self-ventilated (IP6K9K). - Technical Specifications Motor: - Model: TSA003367R1 - Power (P): 142 kW - Speed (n): 2530 min - Voltage (U): 570 V - Current (I): 195 A - Frequency (f): 85 Hz - Additional Specifications: - Pressure difference (Δp): – Pa - Power (P): kW - Speed (n): 4812 rpm - Mass (m): 430 kg - Torque (M): 944 Nm
