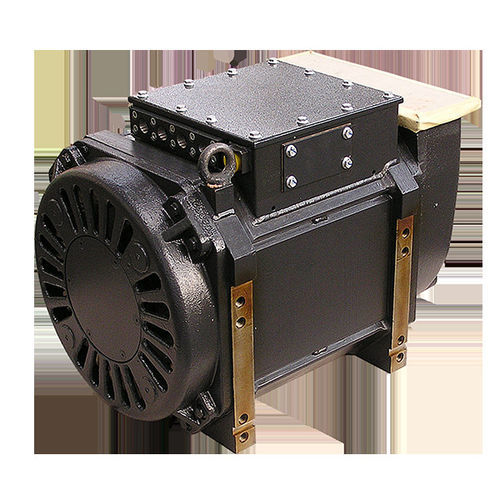

Asynchronous railway traction motor TMF 59-25-4

ACforced air-cooled

The Stadler Rail DMU for FAL is a traction motor designed for use in Italy. It features a TMF 59-25-4 traction motor with the following technical specifications: - Power (P): 130 kW - Speed (n): 1479 min - Voltage (U): 505 V - Current (I): 185 A - Frequency (f): 50 Hz - Flow rate (Q): 0.4 m/s Additional specifications include: - Pressure difference (Δp): 410 Pa - Mass (m): 550 kg - Torque (M): 1491 Nm The motor is air-cooled, with forced ventilation and an open design, rated at IP6K9K.
