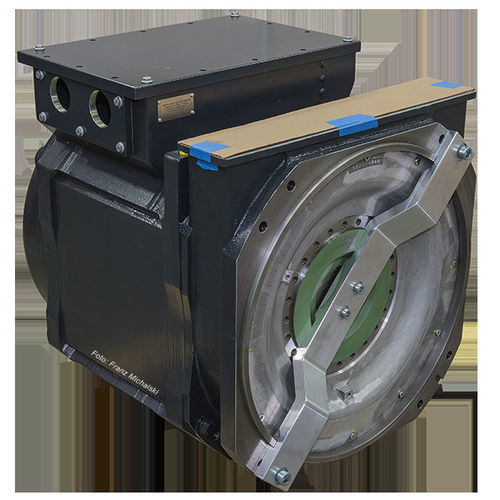

Asynchronous railway traction motor TMF 59-33-4

ACforced air-cooled

The Stadler Rail FLIRT DMU Motor for TEXRail and SBCTA is a traction motor designed for use in the United States. It features an air-cooled, forced ventilation, open design with an IP6K9K protection rating. - Technical Specifications Motor: - Model: TMF 59-33-4 - Power (P): 302 kW - Speed (n): 1485 min - Voltage (U): 500 V - Current (I): 405 A - Frequency (f): 50 Hz - Flow rate (Q): 0.7 m/s - Pressure difference (Δp): 1108 Pa - Mass (m): 1040 kg - Torque (M): 3796 Nm
