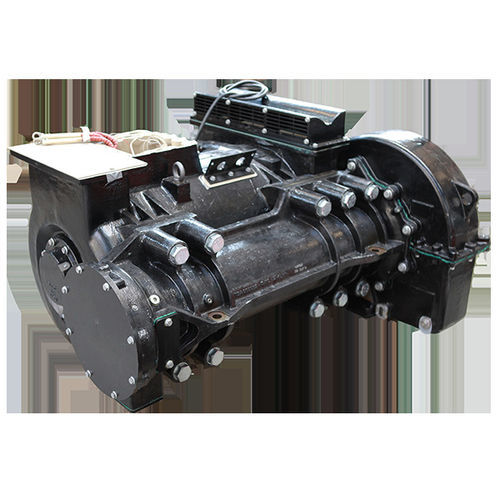

Asynchronous railway traction motor TSA005750R1ACself-ventilatedforced air-cooled
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous
- Current type
- AC
- Cooling mechanism
- self-ventilated, forced air-cooled
- Power
286 kW, 346 kW
(389 hp, 470 hp)- Rotational speed
1,396 rpm
(8,771 rad.min-1)- Weight
590 kg
(1,301 lb)
Description
The TSA Traction Drive for Indian Railways is designed for use in Indian Railways. It features a traction motor and gearbox with the following specifications:
- Motor Specifications:
- Power (P): 286 kW
- Speed (n): 1396 min
- Voltage (U): 1195 V
- Current (I): 175 A
- Frequency (f): 71 Hz
- Cooling: Air-cooled, Open design, Self-ventilated (IP6K9K)
- Gearbox Specifications:
- Type: Single reduction helical gearbox for nose suspended drive, horizontal split gear case
- Motor/Gearbox connection: Flying pinion (hub pinion)
- Gearbox/Wheel-set connection: Direct on wheel set shaft
- Gear ratio: 4.48
- Additional Specifications:
- Axle load: 20.3 t
- Wheel diameter new/worn: 952/877 mm
- Max. operating speed of vehicle: 110 km/h
- Max. starting effort: 34.0 kN
- Nominal power: 346 kW
- Total weight incl. couplings: 590 kg
- Suitable for traction motor: TME 48-45-6
