Turning grade DX110

machiningPCDcarbide

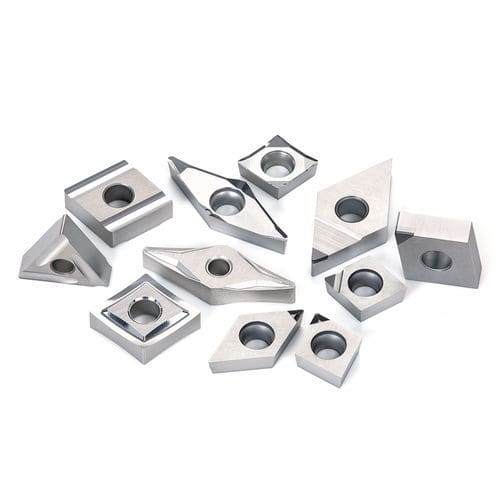

Non-Ferrous Application Series Complete turning solutions for non-ferrous materials The ultimate tools for high speed machining of non-ferrous alloys. Chip nesting is a thing of the past. Features Ultra-fine grained PCD-tipped inserts Definitive insert series for high speed machining of aluminum alloys Ultra-fine grained PCD grade for edge sharpness An extremely wear-resistant grade, featuring strongly-bonded diamond grains that prevents the grains from breaking off during machining Thanks to ultra-fine diamond grains, DX110 provides superior surface finish Chipbreaker series with rake angle of 10° PCD inserts with 3D chipbreaker No more chip nesting in aluminum alloy machining Unique 3D chipbreaker Versatile geometry allows excellent chip control One insert handles from rough to finish operations Optimal rake angle design effectively directs chips to the redirector Fine-grained cemented carbide inserts with chipbreaker for non-ferrous alloy No more chip nesting in aluminum alloy and copper alloy machining For positive insert First-choice geometry for non-ferrous applications Provides excellent chip control and resistance to wear and built-up edge Low cutting forces generated by a large rake angle and sharp cutting edge 3D geometry with lapped rake face Superb chip control enabled by large inclination angle of the cutting edge Available on 26 total inserts, including CCGT, DCGT, RCGT, TCGT, and VCGT inserts Press-in chipbreaker ideal for medium to finish operations Versatile geometry with a large inclination angle of the cutting edge. Ideal for medium to finish operations Provides superior surface finish and chip control
