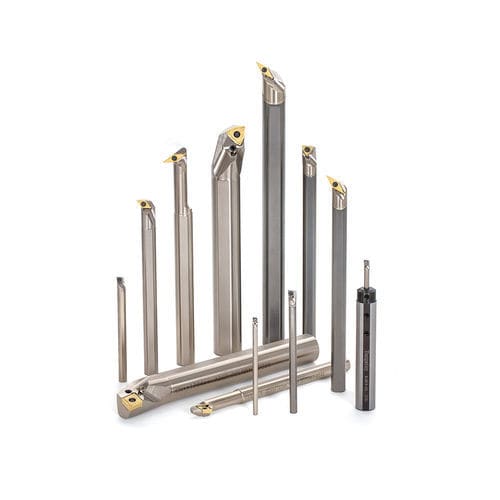

Finish boring tool STREAMJETBAR

insert

Ideal tool geometry has been developed for excellent chip evacuation by extensive structural analysis simulation Features Engineered for tool strength and optimal chip evacuation 1. Tool body of special alloy steel, designed to reduce chatter • Ensures superior surface finish quality over conventional ID turning tools. • Improved tool life, efficiency, and economy. 2. Optimal holder design assures low cutting load and high performance in the smallest bore diameters 3. Easy to use Marking specifications Example #1 General Engineering Part: - Machine parts Material: - S35C (C35) Toolholder: - E20S-SDUCR11-D270 Insert: - DCMT11T304-PS Grade: - T9215 Cutting conditions: - Vc = 70 – 160 (m/min) f = 0.12 – 0.2 (mm/rev) ap = 1.0 (mm) Coolant: Wet Example #2 Automotive Industry Part: - Automotive parts Material: - S45C (C45) Toolholder: - A12M-SDUPL07-D180-P Insert: - DPMT070204-PS Grade: - T9215 Cutting conditions: - Vc = 130 (m/min) f = 0.1 (mm/rev) ap = 1.5 (mm) Coolant: Wet
