Turning grade BXA10

machiningCBNfor hardened steel

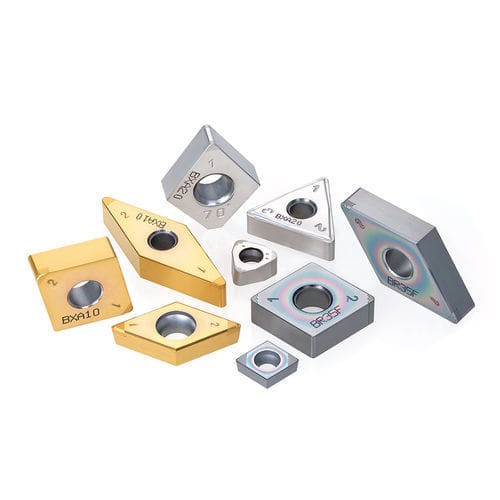

Coated CBN series for a wide range of hard part turning. The most suitable grade can be selected for your application requirements. Grade properties TiCN coating with high thermal stability and wear résistance Multilayer TiAIN coating with good adhésion and résistance to délamination and chipping Strong coating-substrate adhésion prevents délamination Dedicated CBN substrate with excellent flank wear and crater wear résistance Thick multilayer TiAIN coating with superior wear and chipping résistance Strong coating-substrate adhésion prevents délamination Dedicated CBN substrate with excellent crater wear and fracture résistance Multilayer AlCrN coating with excellent fracture résistance Strong coating-substrate adhésion prevents délamination Dedicated CBN substrate with excellent chipping and fracture résistance WavyJoint New brazing technology for increased machining efficiency A maximum depth of cut up to 0.8 mm. Reduces the number of passes to increase productivity. Innovative WavyJoint brazing technology Prevents the CBN tips from debrazing, eliminating abrupt insert fractures during demanding dry machining, while securing stable and predictable hard turning operations. Hardbreakder Series HS chipbreaker Optimized chipbreaker design for excellent chip control during hard turning at aggressive conditions HP chipbreaker Designed for finish machining of hardened parts with close tolerances HF and HM chipbreakers Suited for hard turning applications requiring great D.O.C. such as carburized layer removal
