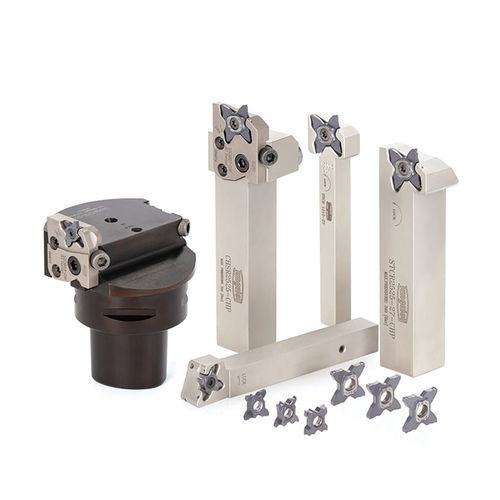

Axial grooving tool TETRACUT

insert

Ground insert clamps into unique insert pocket and provides high rigidity as well as repeatability Features 1. Unique 3-point clamping system The unique pocket design provides accurate indexing repeatability of the cutting edge height. 2. Ground or molded chip breakers Enhanced lineup for greater flexibility. 3. Expedited delivery service for special grooving inserts Example #1 General Engineering Part: - Shaft stator Material: - S45C / C45 Toolholder: - STCR2525-27 Insert: - TCS27-200-020 Grade: - AH725 Cutting conditions: - Vc = 210 (m/min) f = 0.15 (mm/rev) CDX = 2 (mm) CW = 2 (mm) Application: External grooving Coolant: Wet Machine: NC lathe Example #2 Automotive Industry Part: - Input shaft Material: - SCr420 / 20Cr4 Toolholder: - STCR2525Z18 Insert: - TCG18R150-020 Grade: - AH7025 Cutting conditions: - Vc = 100 (m/min) f = 0.08 (mm/rev) CDX = 2.1 (mm) CW = 2 (mm) Application: External grooving Coolant: Wet Machine: NC lathe Example #3 Miniature / Electronic Industry Part: - Spool shaft Material: - S45C / C45 Toolholder: - STCR1010X18 Insert: - TCP18R200F-010 Grade: - SH725 Cutting conditions: - Vc = 43 (m/min) f = 0.10 (mm/rev) CDX= 1.5 / 1.1 (mm/min) CW = 2 / 2.5 (mm) Application: External grooving Coolant: Wet Machine: Swiss lathe
