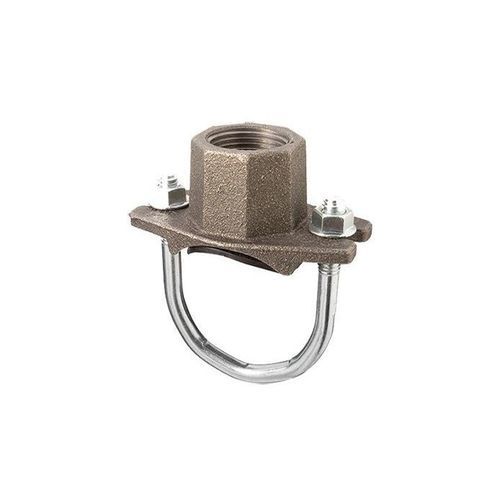

Metal pipe clamp 40-5

Overview
The GRINNELL G-FIRE Figure 40-5 Strap is an economical alternative to welded pipe outlets for steel pipe. It installs on full-length pipe runs to eliminate welding and threading, reducing material waste and installation time. Suitable for wet pipe, dry pipe and deluge fire protection systems. Maximum rated pressure: 175 psi (12 bar).

Features

• Economical alternative to welded pipe outlets on steel pipe
• Compatible with full lengths of pipe to avoid cutting and joining
• Eliminates welding and threading, reducing waste and installation time
• Listed by UL and ULC; FM Approved
• Suitable for wet pipe, dry pipe and deluge systems
• Available in Americas only

Product Details
Product Type: Fitting
Listings and Approvals: UL and ULC Listed; FM Approved
Sizes: Pipe Run: 1-1/4 in. to 2-1/2 in. (DN32 to DN65); Outlet Thread: 1/2 in. NPT to 1 in. NPT
Regional Availability: Americas Only

Specifications

• Max Rated Pressure: 175 psi (12 bar)
• Suitable for: Wet pipe, dry pipe, and deluge systems
• Sizes: Pipe Run 1-1/4 in. to 2-1/2 in. (DN32 to DN65)
• Outlet Thread: 1/2 in. NPT to 1 in. NPT
• Listings and Approvals: UL and ULC Listed; FM Approved
• Designed to eliminate welding and threading to reduce installation time and material waste
