Water pump PN seriesreciprocatingstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- reciprocating
- Mobility
- stationary
- Domain
- industrial
- Applications
- unloader
- Material
- steel, aluminum, ceramic, brass
- Other characteristics
- double, flow, reinforced, built-in
- Flow
Max.: 13 l/min
(3.43424 us gal/min)Min.: 2 l/min
(0.52834 us gal/min)- Pressure
100 bar, 110 bar, 120 bar, 140 bar
(1,450.377 psi, 1,595.415 psi, 1,740.453 psi, 2,030.528 psi)- Power
Max.: 4 kW
(5.44 hp)Min.: 0.4 kW
(0.54 hp)- Length
198 mm
(8 in)- Width
191 mm
(7.52 in)- Height
113 mm
(4.45 in)- Weight
5.3 kg
(11.68 lb)
Description

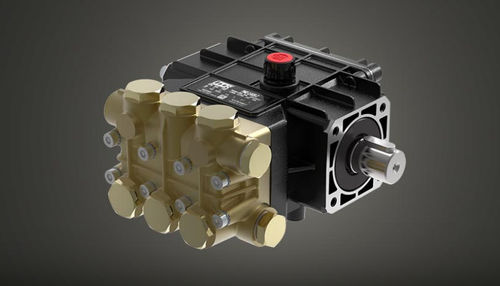

Reciprocating plunger pump, 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pumps of this series have a Ø24 mm cylindrical male shaft, they produce a flow from 2 to 15 l/min, they operate at max 140 bar.
Some models are available with built-in unloader valve (and injector).
All models are also available with aluminum die-casted head for pressure up to 90 bar (1300 PSI).
