Reciprocating pump VH serieswaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- reciprocating
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel, steel, aluminum, ceramic
- Other characteristics
- double, flow
- Flow
30.3 l/min, 40 l/min
(8.00441 us gal/min, 10.56688 us gal/min)- Pressure
600 bar
(8,702.264 psi)- Power
34.8 kW, 45.9 kW
(47.31 hp, 62.41 hp)- Length
495 mm
(19 in)- Width
397.5 mm
(15.65 in)- Height
230 mm
(9.06 in)- Weight
66 kg
(145.51 lb)
Description

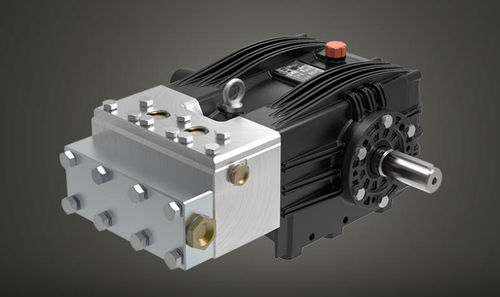

Reciprocating plunger pump, 3 solid ceramic plungers, stainless steel block-style head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The model of this series has a Ø35 mm cylindrical male shaft, it produces a flow of 40 l/min, it operates at max 600 bar.
