Water pump GAMMA-IL 160-200 seriesreciprocatingstationarymobile
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- reciprocating
- Mobility
- stationary, mobile
- Domain
- industrial
- Material
- steel, aluminum, ceramic, brass
- Other characteristics
- double, flow
- Flow
163 l/min, 169.7 l/min, 202 l/min, 214.9 l/min
(43.06004 us gal/min, 44.83 us gal/min, 53.36275 us gal/min, 56.77057 us gal/min)- Pressure
80 bar
(1,160.302 psi)- Power
24.9 kW, 31.5 kW
(33.85 hp, 42.83 hp)- Length
561 mm
(22 in)- Width
491.25 mm
(19.34 in)- Height
341 mm
(13.43 in)- Weight
69 kg
(152.12 lb)
Description

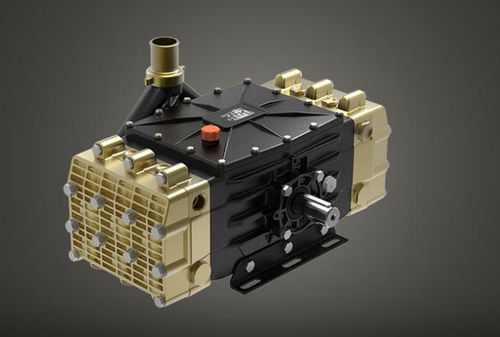

Reciprocating plunger pump, 6 solid ceramic plungers, forged brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pump GAMMA has a double splined/cylindrical shaft, it produces a flow from 163 to 202 l/min, it operates at max 80 bar.
Catalogs
No catalogs are available for this product.
See all of UDOR S.p.A.‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
