Water pump CH seriesreciprocatingstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- reciprocating
- Mobility
- stationary
- Domain
- industrial
- Material
- stainless steel, steel, aluminum, ceramic
- Other characteristics
- double, flow
- Flow
Min.: 11.5 l/min
(3.03798 us gal/min)Max.: 20 l/min
(5.28344 us gal/min)- Pressure
500 bar
(7,251.887 psi)- Power
11 kW, 11.5 kW, 15.3 kW, 19.1 kW
(14.96 hp, 15.64 hp, 20.8 hp, 25.97 hp)- Length
384 mm
(15 in)- Width
247 mm
(9.72 in)- Height
154 mm
(6.06 in)- Weight
21.1 kg, 21.3 kg
(46.52 lb, 46.96 lb)
Description

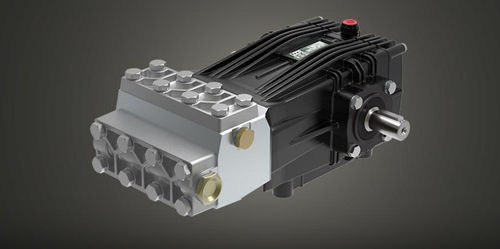

Reciprocating plunger pump, 3 solid ceramic plungers, block-style stainless steel head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
The pumps of this series have a Ø24 mm cylindrical male shaft, they produce a flow from 11,5 to 20 l/min, they operate at max 500 bar.
