Dry filter paint booth

closed circuitfor partsmodular

Overview
The dry painting booths are composed of the following elements:

• Base structure with bolted stainless steel or aluminized sheet metal modules
• Modular external paneling made of ribbed sheet metal
• Progressive smoke abatement system: in the first body with original Andreae filter curtains (or medium-efficiency filters) and high-efficiency filter modules. In Andreae filters, the arrangement of the holes forces the airflow to rapidly change direction on three axes, thus separating the particles from the air through inertia. Filter clogging, as required by regulations, is monitored by a differential pressure switch.
• Extraction unit mounted directly on the cabin ceiling
• Distribution system to ensure uniform distribution of extraction across the entire cabin front
• Electrical panel located outside the cabin, housed in a watertight cabinet

Additional information

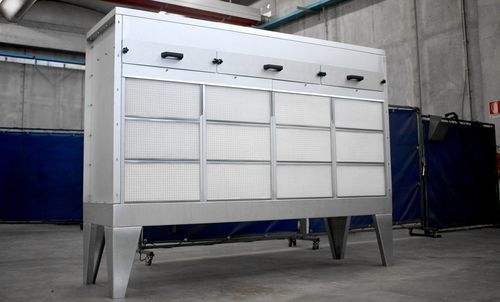

The product is presented as part of the Finitech range by Ultratech Group. The page includes a representative image of the dry painting booth and the Finitech brand logo.

Characteristics / technical specifications

• Structure: bolted modules in stainless steel or aluminized sheet metal
• External paneling: modular ribbed sheet metal panels
• Smoke abatement: progressive system with Andreae filter curtains or medium-efficiency filters plus high-efficiency filter modules
• Filtration detail: Andreae filters cause airflow to change direction on three axes to separate particles by inertia
• Filter monitoring: differential pressure switch for filter clogging detection (regulatory compliance)
• Extraction: unit mounted on cabin ceiling
• Air distribution: system ensuring uniform extraction across cabin front
• Electrical panel: external, installed in a watertight cabinet
