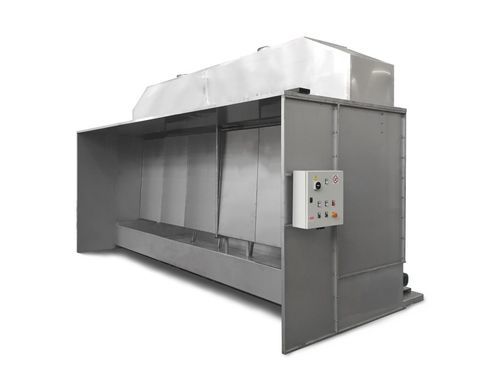

Closed circuit paint booth CVP seriesfor partswaterwet paint
Add to favorites
Compare this product
Characteristics
- Structure
- closed circuit
- Applications
- for parts
- Filter type
- water
- Other characteristics
- custom-made, ventilated, wet paint
Description
Product overview
The painting booth is composed of:
TECHNICAL DATA
Main components
The painting booth is composed of:
- Load-bearing structure in aluzink or stainless steel sheet
- Overflow tank with adjustment screws for leveling the water curtain
- Removable stainless steel water curtain for periodic maintenance
- Collection tank with mechanical decantation, removable filters, electric feed pump for the water curtain, spray nozzles and skimming tube
- Emission abatement system including labyrinth filter in stainless steel or aluzink sheet, counterflow spray ramps with nozzles, droplet separator before the extraction hood made of reinforced polypropylene profiles, and drawer-type removable fiberglass filters with sealing gasket
- Electrical control panel housed in a watertight cabinet located outside the cabin
TECHNICAL DATA
- Sizes (CVP): 1, 2, 3, 4, 5, 6 meters and special sizes
- Material: Aluzink or stainless steel sheet
- Panel execution: self-supporting panels
- Assembly: welding plus screws
- Filtration efficiency: > 99.8%
- Dry product emission to atmosphere: ≤ 3 mg/Nm³
- Noise level: ≤ 80 dB(A)
Main components
- Load-bearing frame
- Overflow tank with leveling screws
- Stainless steel removable water curtain
- Collection tank with mechanical decantation and removable filters
- Electric water feed pump, spray nozzles and skimming tube
- Emission abatement system: labyrinth filter, spray ramps, droplet separator, removable fiberglass drawer filters
- Watertight external electrical panel
