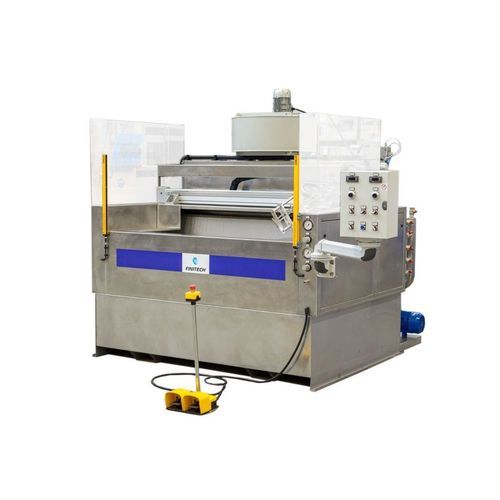

Automatic coating application system CVR 1600

Overview
The CVR 1600 series automatic painting system consists of an automatic painting unit installed in a purpose-shaped and equipped paint booth, forming a single transportable and quickly installable unit. The painting unit mounted at the top of the booth automatically coats parts fixed on the workpiece holder frame. The frame is manually placed on the supports and rotates while the spray gun advances, ensuring even paint distribution on all surfaces. At cycle end the frame is released from its guards and can be removed and replaced with another frame for subsequent painting.

Technical data (table)
Overall dimensions: 2200 x 2000 x 2200 h mm
Total weight: 1000 Kg
Collection tank capacity: 1250 lt
Electrical power installed with extractor: 7 Kw
Electrical power supply: 400 Volts 50 hz
Killing efficiency: >99.8%
Maximum frame length: 1070 mm
Pieces loadable on frame: 16

Features / technical specifications

• Overall dimensions: 2200 x 2000 x 2200 h mm
• Total weight: 1000 Kg
• Collection tank capacity: 1250 lt
• Electrical power installed with extractor: 7 Kw
• Electrical power supply: 400 Volts 50 hz
• Killing efficiency: >99.8%
• Maximum frame length: 1070 mm
• Pieces loadable on frame: 16
