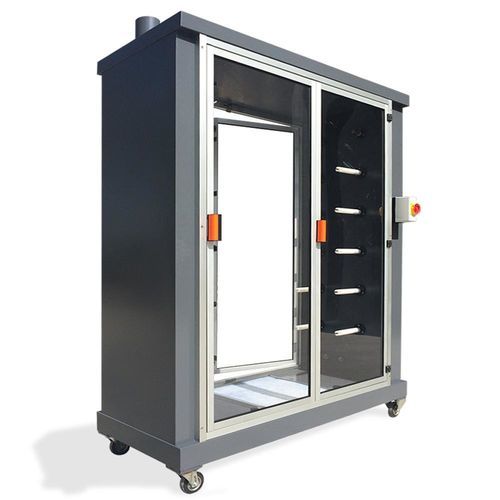

Drying unit MAV 12

Description
The MAV 12 manual paint drying unit maintains freshly painted frames in controlled rotation to promote uniform paint distribution prior to the drying phase. Designed for finishing departments and small-scale production, it provides a compact, transportable solution for flash-off of solvent and waterborne coatings.

Features

• Cabin constructed of aluminized steel sheet panels on a load-bearing frame; four wheels mounted under the supporting frame for transport.
• Doors folding type with aluminum profiles and Lexan panels.
• Suction rear connection located at the upper section for extraction.
• Filtration resin filter positioned in the lower section with quick-release access.
• Frame rotation with 12 rotating supports fitted with clutches to hold workpieces.
• Electrical panel installed in a watertight enclosure, protection rating IP55.

Data / Model
MODEL: MAV 12
Overall dimensions (L×W×H mm): 1,600×650×2,230
Workpiece holding rods (nr.): 12
Electrical power: 0.18 kW
Electrical supply: 380 V, 50 Hz
Max weight of pieces (including frames): 3 kg
Noise level: < 80 dB
Max workpiece-holder frame size: 1,070 mm

Technical specifications

• Model: MAV 12
• Overall dimensions (L×W×H): 1,600×650×2,230 mm
• Load capacity (workpiece holding rods): 12
• Electrical power: 0.18 kW
• Electrical supply: 380 V, 50 Hz
• Max weight of pieces (including frames): 3 kg
• Noise level: < 80 dB
• Max workpiece-holder frame size: 1,070 mm
• Cabin: aluminized steel sheet panels on load-bearing frame
• Mobility: four wheels under supporting frame for transport
• Doors: folding with aluminum profiles and Lexan panels
• Suction: rear connection in upper part
• Filtration: resin filter in lower part with quick-release
• Frame rotation: 12 rotating supports with clutch
• Electrical panel: watertight enclosure, protection rating IP55
