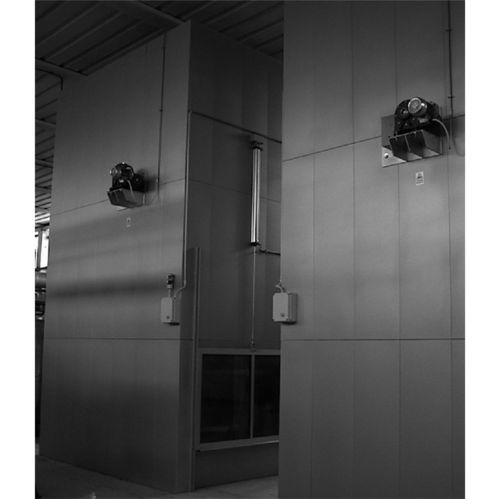

Drying oven FCV 250

chambercuringpreheating

Overview
The FCV 250 series drying ovens enable processing of loaded parts through continuous hot air circulation. Designed for maximum operating temperature up to 250 °C, the units use forced air recirculation with high-temperature electric fans mounted outside the casing. Heating can be provided by electric resistors or by a heat exchanger with a gas burner. Safety and control features include an overheating thermostat and an adjustable timer for delayed fan shutdown.

Ovens are supplied complete with

• Perimeter casing in aluzink steel sheet panels with double metal casing and mineral wool insulation; panels 145 mm thick with thermal break and internal load-bearing frame with joint covers for compactness and mechanical strength.
• Access doors — front-opening doors constructed like the perimeter panels, fitted with anti-panic handle and rubber perimeter seal.
• Hot air generator located on one side with forced recirculation via one or more high-temperature electric fans mounted outside the casing; insulated ducting with adjustable deflectors for air distribution and extraction through a suitable filter. Heating by electric resistors or heat exchanger with gas burner. Overheating safety thermostat and adjustable timer (0–30 min) for delayed fan shutdown.
• Electrical panel housed outside in a watertight cabinet with IP55 protection.

Technical specifications

• Model series: FCV 250 series
• Maximum temperature (Tmax): 250 °C
• Perimeter panels: aluzink steel sheet, double metal casing with mineral wool insulation
• Panel thickness: 145 mm with thermal break
• Internal structure: load-bearing frame and joint covers for compactness and mechanical resistance
• Doors: front opening, anti-panic handle, rubber perimeter seal
• Air circulation: continuous forced recirculation by high-temperature electric fans (fans mounted outside casing)
• Air distribution: insulated ducting with adjustable deflectors; extraction through suitable filter
• Heating options: electric resistors or heat exchanger with gas burner
• Safety: overheating safety thermostat
• Timer: adjustable from 0 to 30 minutes for delayed fan shutdown
• Electrical panel protection: IP55 watertight cabinet

Typical applications

• Drying, curing and heat treatment of industrial parts, components preheating, and thermal conditioning in production and R&D environments where controlled temperatures up to 250 °C are required.
