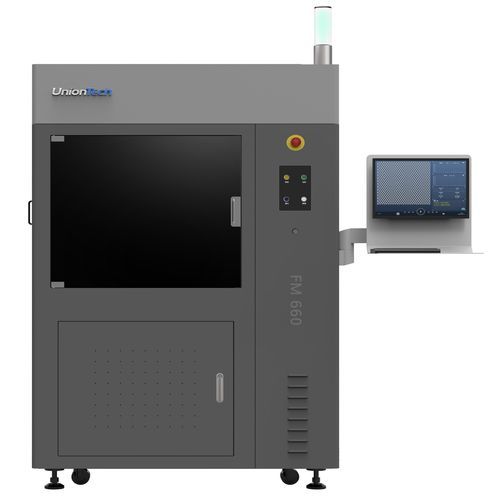

Resin 3D printer FM660

prototypingfor model makingfor mold manufacturing

Overview
Variable-spot laser stereolithography (SLA) system for rapid, precise resin prototyping and tooling. Extremely fast and efficient processing with a dynamic beam focus capable of reproducing sole and side patterns down to 0.06 mm detail. Configurable forming formats enable faster production scheduling and higher throughput. EPM remote equipment control platform provides real-time monitoring and optimized management. CE certified.

Recommended Applications

• Mass production of wooden molds
• Rapid tooling
• Research and development of samples
• Try-on of new products

Technical Specifications

• Build Volume: 600 × 600 × 400 mm (23.6 × 23.6 × 15.7 in)
• Accuracy: Dimension < 100 mm: ±0.1 mm; Dimension ≥ 100 mm: ±0.1% × Dimension
• Layer Thickness: 0.05-0.25 mm
• Laser: 355 nm, solid-state frequency tripled; Nd: YVO4
• Beam Focus: Dynamic & Variable
• Beam Size: 0.07-0.70 mm
• Scanning Speed: 8-15 m/s
• Control Software: UnionTech™ RSCON
• Operation System: Windows 10
• Data Interface: .stl
• Network: Ethernet, IEEE802.3, TCP/IP
• Electrical Requirements: 200-240 VAC, 50/60 Hz, Single Phase
• Rated Power: 2.6 kVA
• Systems Control: Closed-loop
• Temperature Range: 72–79 °F (22–26 °C)
• Maximum Change Rate: 1 °C/hour
• Relative Humidity: < 40%
• Resin Vat: Replaceable / Fixed
• Machine Dimensions: 1345 × 1295 × 1930 mm (52.95 × 50.98 × 75.98 in)
• Machine Weight: 850 kg
