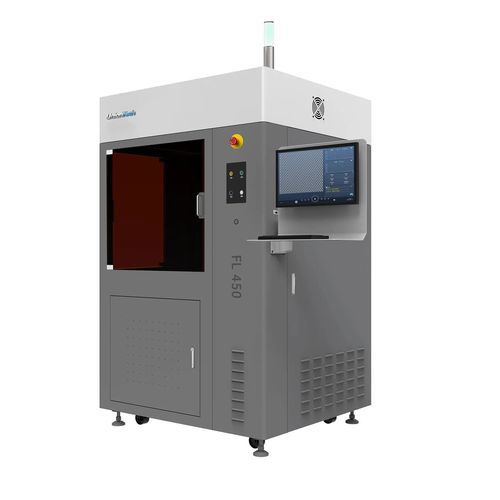

Resin 3D printer FL450

industrialprototypingfor mold manufacturing

Overview
Variable-spot SLA 3D printer optimized for footwear and mold production. Extremely fast and efficient with a dynamic beam focus capable of restoring sole and side pattern details down to 0.06 mm. Customizable build formats support faster production scheduling and higher throughput. EPM remote equipment control platform enables real-time monitoring and centralized management. CE certification included.

Recommended Applications

• Mass production of wooden molds
• Rapid tooling
• Research and development of samples
• Try-on and validation of new products

FL450 Technical Data (table)
Build Volume: 450 × 450 × 350 mm (17.7 × 17.7 × 13.8 in)
Accuracy: Dimension <100 mm: ±0.1 mm; Dimension ≥100 mm: ±0.1% × Dimension
Layer Thickness: 0.05–0.25 mm
Laser: 355 nm, solid-state frequency-tripled Nd:YVO4
Beam Focus: Dynamic & variable
Beam Size: 0.07–0.70 mm
Scanning Speed: 8–15 m/s
Control Software: UnionTech™ RSCON
Operating System: Windows 10
Data Interface: .stl
Network: Ethernet, IEEE802.3, TCP/IP
Electrical Requirements: 200–240 VAC, 50/60 Hz, single phase
Rated Power: 2.6 kVA
Systems Control: Closed-loop
Temperature Range: 22–26 °C (72–79 °F)
Maximum Change Rate: 1 °C/hour
Relative Humidity: < 40%
Resin Vat: Replaceable / Fixed
Machine Dimensions: 1245 × 1105 × 1960 mm (49.02 × 43.50 × 77.17 in)
Machine Weight: 810 kg

Characteristics / Technical specifications

• Technology: Stereolithography (SLA) optimized for the footwear industry and mold production
• Variable spot technology with dynamic & variable beam focus
• Beam size range: 0.07–0.70 mm
• High scanning speed: 8–15 m/s (up to 15 m/s)
• Layer thickness range: 0.05–0.25 mm for fine detail
• Large build volume: 450 × 450 × 350 mm
• Accuracy: ±0.1 mm for dimensions under 100 mm; ±0.1% for larger dimensions
• Laser source: 355 nm, solid-state frequency-tripled (Nd:YVO4)
• Control software: UnionTech™ RSCON; Operating System: Windows 10; accepted data format: .stl
• Connectivity: Ethernet (IEEE802.3) with TCP/IP
• Electrical: 200–240 VAC, 50/60 Hz, single phase; rated power 2.6 kVA
• Systems control: closed-loop feedback
• Recommended environmental conditions: 22–26 °C, relative humidity <40%, maximum temperature change 1 °C/hour
• Resin vat: replaceable or fixed options
• Machine dimensions and weight: 1245 × 1105 × 1960 mm; 810 kg
