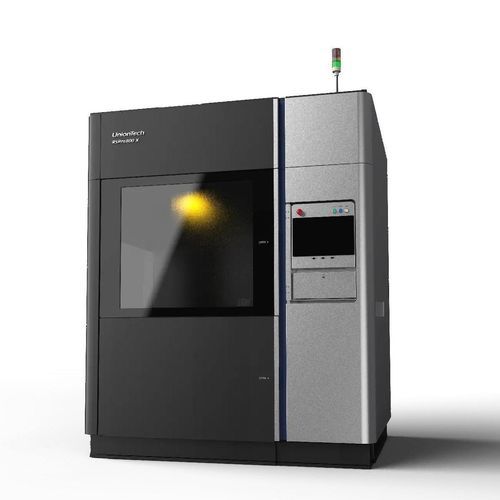

Resin 3D printer RSPro800 X

medicalfor the automotive industryprototyping

Product overview
RSPro800 X is a large-format industrial SLA 3D printer equipped with four synchronized lasers (800 × 800 × 550 mm build volume). The multi-laser architecture increases throughput — up to 60% faster compared with previous single/dual-laser systems — while supporting automated workflows and remote monitoring for industrial production environments such as automotive, medical device manufacturing and rapid prototyping.

Key features

• Faster printing: 4-laser synchronous printing technology delivering up to 60% higher throughput
• High precision: ±0.1 mm dimensional accuracy for L<100 mm, and ±0.1% × L for L ≥100 mm
• Large-format capacity: 800 × 800 × 550 mm build volume for large parts and small-batch production
• Smart manufacturing: UT-ONE remote monitoring and batch device management with data insights
• Material handling: replaceable 560 kg resin vat to support long production runs

Applications

• Functional prototyping and concept validation
• Automotive parts, tooling and rapid iterations
• Investment casting patterns and production tooling
• Medical device prototypes and small-series medical parts

Technical data
Build volume: 800 × 800 × 550 mm
Layer thickness: 0.05–0.25 mm
Accuracy: L<100 mm: ±0.1 mm; L ≥100 mm: ±0.1% × L
Laser: 4 Lasers, Solid-state Triple Frequency Nd:YVO4
Beam size: 0.12–0.9 mm
Scanning speed: 2.5–12.8 m/s
Control software: RSCON
Part preparation software: PolydevsPro, BPC
Operating temperature: 22–26 °C
Relative humidity: ≤ 40%
Resin vat capacity: 560 kg (replaceable)
Electrical requirements: 200–240 VAC, 50/60 Hz, 5.9 kVA
Printer dimensions: 2045 × 1965 × 2475 mm (collapses to 2100 mm H for transport)
Net weight: 1693 kg
Certification: CE‑MD (TÜV SÜD)

Specifications

• Build volume: 800 × 800 × 550 mm
• Layer thickness range: 0.05–0.25 mm
• Dimensional accuracy: L<100 mm: ±0.1 mm; L ≥100 mm: ±0.1% × L
• Laser system: 4 Lasers, Solid-state Triple Frequency Nd:YVO4
• Beam size range: 0.12–0.9 mm
• Scanning speed: 2.5–12.8 m/s
• Control software: RSCON
• Preparation software: PolydevsPro, BPC
• Operating temperature: 22–26 °C
• Max relative humidity: ≤ 40%
• Resin vat capacity: 560 kg (replaceable)
• Power: 200–240 VAC, 50/60 Hz, 5.9 kVA
• Dimensions: 2045 × 1965 × 2475 mm (collapsible to 2100 mm H)
• Net weight: 1693 kg
• Certification: CE‑MD (TÜV SÜD)
