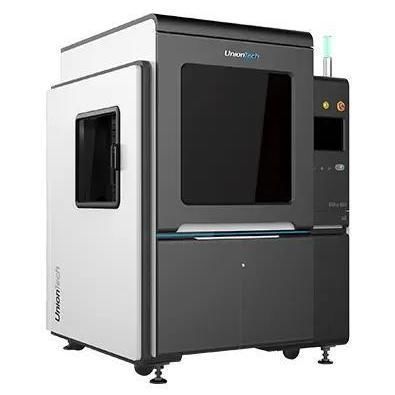

Resin 3D printer RSPro600 2.0

industrialfor model makingfor mold manufacturing

Overview
RSPro600 2.0 is an industrial-grade large-format stereolithography (SLA) 3D printer compatible with a range of engineering resins and suited to small-batch production. It delivers a large build volume with consistent dimensional accuracy and closed-loop control for repeatable results.

Applications

• Architectural parts
• Foot skeleton models
• Transparent cups and housings
• Casting patterns
• Scale models (e.g., eagle model)

Technical specifications

• Build volume: 600 × 600 × 500 mm (23.6 × 23.6 × 19.7 in)
• Accuracy: dimensions <100 mm: ±0.1 mm; dimensions ≥100 mm: ±0.1% × dimension
• Layer thickness: 0.05–0.25 mm
• Laser source: 355 nm, frequency-tripled solid-state (Nd: YVO4)
• Beam focus: dynamic and variable
• Beam size: 0.12–0.2 mm
• Scanning speed: 6–10 m/s
• Control software: UnionTech™ RSCON
• Supported file format: .stl
• Network: Ethernet (IEEE802.3), TCP/IP
• Rated power: 3.0 kVA
• Systems control: closed-loop control
• Recommended environment: temperature 22–26 °C (72–79 °F); relative humidity < 40%
• Resin vat: replaceable
• Machine dimensions: 1550 × 1600 × 2115 mm
• Machine weight: 1490 kg
