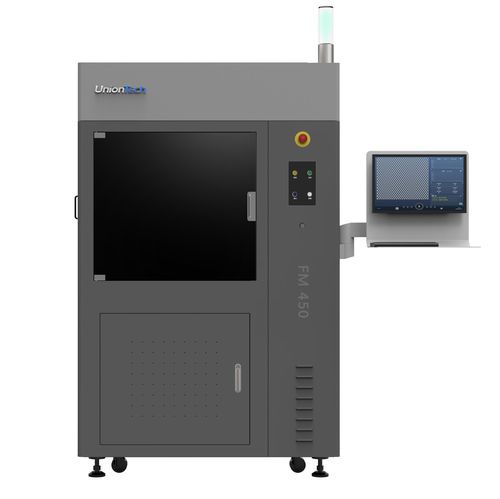

Resin 3D printer FM450

industrialprototypingfor model making

Product Overview
Variable-spot UV laser stereolithography system designed for high-throughput production and fine-detail restoration (capable of restoring sole and side patterns to 0.06 mm). Intelligent control with automatic calibration and automatic rehydration. Remote equipment control and real-time monitoring via EPM platform. CE certification.

Recommended Applications

• Mass production of wooden molds
• Rapid tooling
• Research and development of samples
• Prototyping and try-on of new products

One printer, multiple industries

• Wood mold manufacturing
• Soft materials
• Texture and surface replication
• Finished shoe components
• Footwear consumer goods

FM450 Technical Data
Build Volume: 450 × 450 × 350 mm (17.7 × 17.7 × 13.8 in).
Accuracy: Dimension <100 mm: ±0.1 mm; Dimension ≥100 mm: ±0.1% × Dimension.
Layer Thickness: 0.05-0.25 mm.
Laser: 355 nm, solid-state frequency tripled (Nd:YVO4).
Beam Focus: Dynamic & Variable.
Beam Size: 0.07-0.70 mm.
Scanning Speed: 8-15 m/s.
Control Software: UnionTech™ RSCON.
Operation System: Windows 10.
Data Interface: .stl.
Network: Ethernet, IEEE802.3, TCP/IP.
Electrical Requirements: 200-240 VAC, 50/60 Hz, Single Phase.
Rated Power: 2.6 kVA.
Systems Control: Closed-loop.
Temperature Range: 22–26 °C (72–79 °F).
Maximum Change Rate: 1 °C/hour.
Relative Humidity: < 40%.
Resin Vat: Replaceable / Fixed.
Machine Dimensions: 1245 × 1105 × 1960 mm (49.02 × 43.50 × 77.17 in).
Machine Weight: 810 kg.

Features / Technical specifications

• Build Volume: 450 × 450 × 350 mm
• Accuracy: ±0.1 mm (<100 mm) / ±0.1% × Dimension (≥100 mm)
• Layer Thickness: 0.05-0.25 mm
• Laser: 355 nm, solid-state frequency tripled (Nd:YVO4)
• Beam Focus: Dynamic & Variable
• Beam Size: 0.07-0.70 mm
• Scanning Speed: 8-15 m/s
• Control Software: UnionTech™ RSCON
• Operation System: Windows 10
• Data Interface: .stl
• Network: Ethernet (IEEE802.3, TCP/IP)
• Electrical Requirements: 200-240 VAC, 50/60 Hz, Single Phase
• Rated Power: 2.6 kVA
• Systems Control: Closed-loop
• Working Temperature: 22–26 °C (72–79 °F)
• Maximum Change Rate: 1 °C/hour
• Relative Humidity: < 40%
• Resin Vat: Replaceable / Fixed
• Machine Dimensions: 1245 × 1105 × 1960 mm
• Machine Weight: 810 kg
