Product Overview

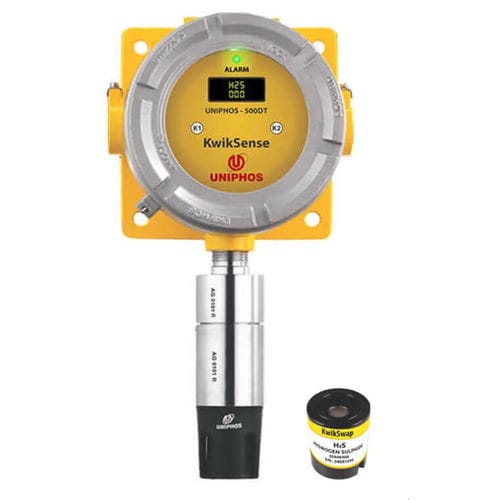

The Uniphos KwikSense Smart Digital Gas Transmitter is a universal field-mounted gas transmitter for detection and continuous monitoring of a wide range of toxic and flammable gases in industrial processes. It supports Uniphos Smart Gas Sensors with pre-calibrated, swappable sensor modules and transportable calibration for rapid sensor replacement. Non-intrusive calibration and configuration are performed using a magnetic wand to minimise downtime. The transmitter provides industry-standard 4-20 mA analog output and RS-485 MODBUS-RTU digital communication; HART protocol is available as an option. The unit holds multiple international certifications including ATEX, IECEx, MED and SIL2.

Applications

• Oil, gas and petrochemical facilities
• Chemical and pharmaceutical plants
• Marine and shipboard gas detection
• Fertilizer production
• Nuclear and power installations
• Iron and steel plants

Features

• Universal field transmitter supporting multiple sensor technologies
• Industry-standard 4-20 mA output with RS-485 MODBUS-RTU digital communication
• Pre-calibrated, swappable Smart Sensors (EC, Pellistor, NDIR, PID, Solid State)
• Transportable calibration for fast sensor exchanges
• Non-intrusive calibration and configuration via magnetic wand
• Three configurable potential-free relay contacts
• Wide temperature class: T4 (-40°C to +85°C)
• Bright OLED display for local readings
• Certifications: ATEX, IECEx, SIL2, InMetro, MED

Gas List (excerpted columns: Gas Name | Gas Code | Ordering Code | Range | Resolution | Sensor Technology)
Gas Name | Gas Code | Ordering Code | Range | Resolution | Sensor Technology
Acetylene | 099C | SSA0099C | 0 – 100% LEL | 1% LEL | Pellistor
Ammonia | 082A | SSA0082A | 0 – 100 ppm | 1 ppm | EC
Ammonia | 082B | SSA0082B | 0 – 1000 ppm | 1 ppm | EC
Bromine* | 061A | SS00061A | 0 – 20 ppm | 0.1 ppm | EC
Butanol | 099D | SSA0099D | 0 – 100% LEL | 1% LEL | Pellistor
Carbon Dioxide | 025A | SSA0025A | 0 – 5% v/v | 0.01% v/v | NDIR
Carbon Dioxide | 025B | SSA0025B | 0 – 100% v/v | 1% v/v | NDIR
Carbon disulphide | 021A | SSA0021A | 0 – 50 ppm | 0.1 ppm | PID
Carbon Monoxide | 020A | SSA0020A | 0 – 1000 ppm | 1 ppm | EC
Chlorine | 060A | SSA0060A | 0 – 20 ppm | 0.1 ppm | EC
Chlorine | 060B | SSA0060B | 0 – 10 ppm | 0.1 ppm | EC
ETO** | 083A | SSA0083A | 0 – 20 ppm | 0.1 ppm | EC
ETO** | 083B | SSA0083B | 0 – 100 ppm | 1 ppm | EC
Formaldehyde | 098A | SS00098A | 0 – 10 ppm | 0.1 ppm | EC
HC (Methane) | 099A | SSA0099A | 0 – 100% LEL | 1% LEL | Pellistor
HC (Methane) | 099G | SSA0099G | 500 – 10000 ppm | 10 ppm | Solid State
Hydrogen (IIC) | 090C | SSA0090C | 0 – 100% LEL | 1% LEL | Pellistor
Hydrogen (IIC) | 090A | SSA0090A | 0 – 1000 ppm | 1 ppm | EC
Hydrogen (IIC) | 090B | SSA0090B | 0 – 100% LEL | 1% LEL | EC
Hydro Carbon | 099H | SSA0099H | 50 – 1000 ppm | 1 ppm | Solid State
Hydrogen Chloride* | 070A | SS00070A | 0 – 20 ppm | 0.1 ppm | EC
Hydrogen Cyanide | 075A | SSA0075A | 0 – 100 ppm | 1 ppm | EC
Hydrogen Fluoride* | 072A | SS00072A | 0 – 10 ppm | 0.1 ppm | EC
Hydrogen Sulphide | 030A | SSA0030A | 0 – 100 ppm | 1 ppm | EC
Hydrogen Sulphide | 030B | SSA0030B | 0 – 20 ppm | 1 ppm | EC
LPG | 099B | SSA0099B | 0 – 100% LEL | 1% LEL | Pellistor
Methane | 099E | SSA0099E | 0 – 100% LEL | 1% LEL | NDIR
Methane | 099F | SSA0099F | 0 – 100% v/v | 1% v/v | NDIR
Mercaptan* | 035A | SS00035A | 0 – 20 ppm | 0.1 ppm | EC
Methanol** | XXA | – | 0 – 100 ppm | 1 ppm | EC
Nitrogen Dioxide | 081A | SS00081A | 0 – 20 ppm | 0.1 ppm | EC
Oxygen | 010A | SSA0010A | 0 – 25% v/v | 0.1% v/v | EC
Ozone* | 015A | SS00015A | 0 – 1 ppm | 0.01 ppm | EC
PCl3* | 071A | SS00071A | 0 – 10 ppm | 1 ppm | EC
Phosgene* | 055A | SS00055A | 0 – 1 ppm | 0.01 ppm | EC
Phosphine | 050A | SS00050A | 0 – 10 ppm | 0.01 ppm | EC
POCl3* | 073A | SS00073A | 0 – 20 ppm | 1 ppm | EC
Propane | 099J | SSA0099J | 0 – 100% LEL | 1% LEL | Pellistor
Propane | 099I | SSA0099I | 0 – 100% LEL | 1% LEL | NDIR
Sulphur Dioxide | 040A | SSA0040A | 0 – 20 ppm | 0.1 ppm | EC
Vinyl Chloride (VCM)* | 022A | SSA0022A | 0 – 100 ppm | 1 ppm | EC
VOC | 100A | SSA0100A | 0 – 1000 ppm | 1 ppm | PID
VOC | 100B | SSA0100B | 0 – 40 ppm | 0.1 ppm | PID
VOC (Benzene) | 100C | SSA0100C | 0 – 20 ppm | 0.1 ppm | PID

Legend
EC: Electrochemical • Pellistor: Pellistor • NDIR: Non-Dispersive Infra-Red • PID: Photo Ionization Detection

Technical specifications

• Sensor technology: EC / PEL / NDIR / PID / SS
• Operating voltage: 18 V to 30 VDC
• System type: µController-based instrument (non-intrusive calibration)
• Display: 8 x 2 OLED
• Sampling type: Diffusion
• Sensor: Swappable Smart Sensor (pre-calibrated)
• LEDs: Tri-colour LED
• Alarms: Two user-settable alarms
• Output: RS-485 MODBUS / 4-20 mA current
• Relays: 3 potential-free contacts (configurable)
• Load resistance: 600 Ω (max)
• Power consumption: < 3 W
• Enclosure: Flameproof – cast aluminium alloy or SS-316
• Ingress protection: IP66
• Dimensions: Approx. Diameter: 150 mm; Height: 110 mm
• Wire configuration: 3/4 wires
• Interface: Calibration & configuration via non-intrusive magnetic wand
• Temperature class: T4 (-40°C to +85°C)
• Operating temperature: -40°C to 65°C
• Operating pressure: Ambient + 10%
• Operating humidity: 0-95% RH (non-condensing)
• Cable entries: 1/2” NPT (2 entries)
• Certifications: ATEX / IECEx / PESO / CMFRI / SIL / MED / InMetro
• Weight: Cast aluminium: ≈ 2.5 kg; SS 316: ≈ 5.2 kg
