Globe valve V16/2 series
pneumaticelectrichydraulic

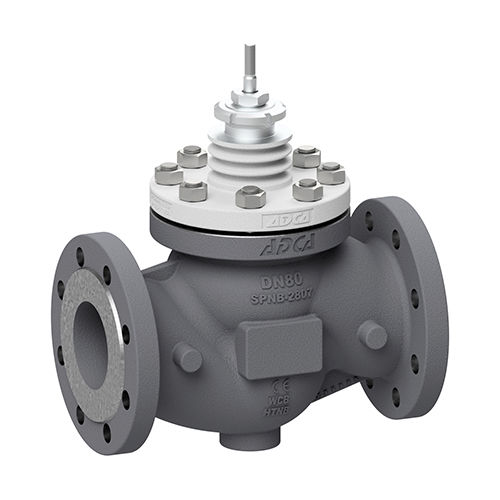

Globe valve - V16/2 series - VALSTEAM ADCA Engineering S.A. - pneumatic / electric / hydraulic
Globe valve - V16/2 series - VALSTEAM ADCA Engineering S.A. - pneumatic / electric / hydraulic
Globe valve - V16/2 series - VALSTEAM ADCA Engineering S.A. - pneumatic / electric / hydraulic - image - 2
Add to favorites
Compare this product

Characteristics

Type
globe
Operation
pneumatic, electric, hydraulic
Function
for control, shut-off
Body
threaded, female
Applications
for industrial applications, for process applications
Material
SG iron, stainless steel, carbon steel
Number of channels
2-way
Other characteristics
ISO
DN

Max.: 100 mm
(3.937 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 10.2 bar
(147.9 psi)

Temperature

Max.: 400 °C
(752 °F)

Min.: -10 °C
(14 °F)

Flow rate

Max.: 160 m³/h
(5,650.35 ft³/h)

Min.: 2.1 m³/h
(74.16 ft³/h)

Description

The ADCATrol V16/2 is a series of single seated, two-way globe control valves designed for simple process engineering and industrial applications with non-critical operating conditions. These valves can be assembled with pneumatic, hydraulic or electric actuators, for modulating and shut-off control tasks. Bonnet extension for high and low temperatures. Various stem sealing options including bellows sealing. Soft or stellited valve sealing. Reduced bore trims. Silencers. Saturated and superheated steam. Hot and superheated water. Air, gases and others. EN/CONNECTIONS Flanged EN 1092-2 PN 16 Flanged EN 1092-1 PN 16 or PN 40 ASME/CONNECTIONS Flanged ASME B16.5 Class 150 or 300 THREADED/CONNECTIONS Female threaded ISO 7 Rp or NPT
