On/off valve PV15 series
globepneumaticfor water

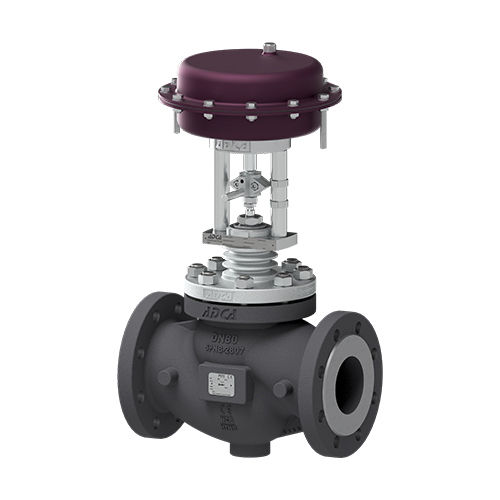

On/off valve - PV15 series - VALSTEAM ADCA Engineering S.A. - globe / pneumatic / for water
On/off valve - PV15 series - VALSTEAM ADCA Engineering S.A. - globe / pneumatic / for water
On/off valve - PV15 series - VALSTEAM ADCA Engineering S.A. - globe / pneumatic / for water - image - 2
Add to favorites
Compare this product

Characteristics

Type
globe
Operation
pneumatic
Function
on/off
Media
for water, for oil, for steam, for air
Body
NAMUR
Applications
for industrial applications, process, actuator
Material
SG iron, stainless steel, carbon steel
Number of channels
2-way
Associated function
service
Other characteristics
compact
DN

Max.: 200 mm
(7.874 in)

Min.: 15 mm
(0.591 in)

Pressure

Max.: 40 bar
(580.2 psi)

Min.: 10.2 bar
(147.9 psi)

Temperature

Max.: 400 °C
(752 °F)

Min.: -10 °C
(14 °F)

Description

The ADCATrol PV15 is a series of single seated, two-way pneumatic on/off globe valves with diaphragm actuator. These valves are suitable for use with the most common process fluids such as steam, water, superheated water, air, neutral gases and oils. Easy to service. Compact and cost-effective. Compact actuators with rolling diaphragm. High spring thrusts and stroking speeds. Yoke and stem coupling with mounting according to NAMUR (DIN IEC 60534-6-1 Top mounted handwheel. Filter regulators, solenoid valves and limit switches. Saturated steam. Hot and superheated water. Air, gases and others. EN/CONNECTIONS: PV15G – Flanged EN 1092-2 PN 16 PV15S and PV15i – Flanged EN 1092-1 PN 16 or PN 40

Catalogs

PV15 (EN)
PV15 (EN)
6 Pages
PV15 (ASME)
PV15 (ASME)
6 Pages
