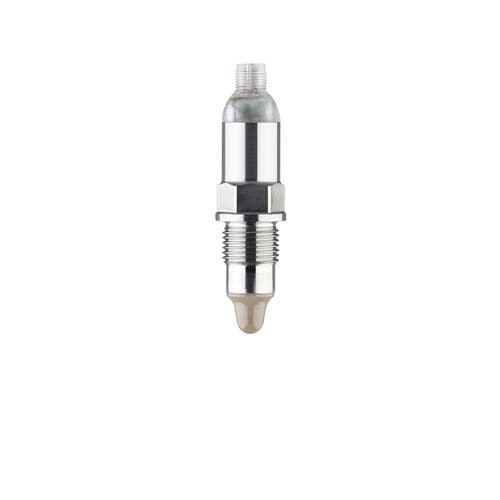

Capacitive level limit switch VEGAPOINT 11
for waterfor the food industryfor the pharmaceutical industry

capacitive level limit switch
capacitive level limit switch
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for water
Applications
for the food industry, for the pharmaceutical industry, for hygienic applications
Mounting
threaded
Other characteristics
ultra-compact, stainless steel, IP66, IP67, IP69
Process pressure

Min.: 0 bar (0 psi)

Max.: 25 bar (362.59 psi)

Process temperature

Min.: -20 °C (-4 °F)

Max.: 100 °C (212 °F)

Description

Ultra-compact capacitive limit switch For the detection of water-based liquids Application area From DK > 2, from thread ½", universal connection G1" for hygiene adapter, M12, transistor output VEGAPOINT 11 is a low-cost limit switch for the detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application. Your benefit Simple setup, as adjustment-free Low-cost limit switch with smallest installation dimensions Process temperature -20 ... 100 °C Process pressure 0 ... 25 bar Materials, wetted parts 316L PEEK Threaded connection ≥ G½, ≥ ½ NPT Seal material EPDM FKM Protection rating IP66/IP67 IP69 Output Transistor (PNP) Ambient temperature -40 ... 70 °C Indication LED
