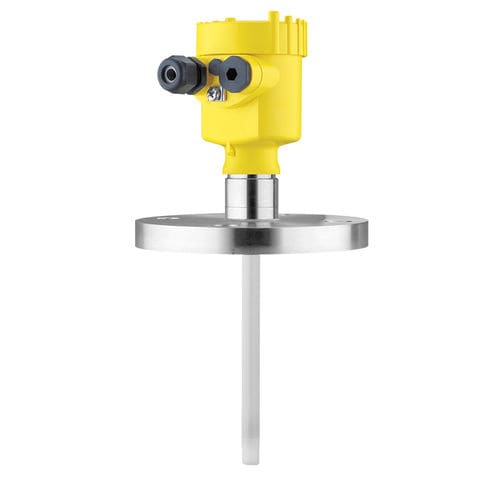

Capacitive level switch VEGACAP 64
for liquidsfor bulk materialsfor tanks

capacitive level switch
capacitive level switch
capacitive level switch
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for liquids, for bulk materials
Applications
for tanks
Mounting
threaded, flange
Other characteristics
aluminum, precision, stainless steel, PTFE, intrinsically safe, IP67, IP68, IP66, rugged, ATEX
Process pressure

Min.: 0 bar (0 psi)

Max.: 64 bar (928.24 psi)

Process temperature

Min.: -50 °C (-58 °F)

Max.: 200 °C (392 °F)

Description

Capacitive rod probe for level detection of adhesive products Rod probe, fully PTFE insulated Application area For adhesive liquids and light, non-abrasive bulk solids, Sensor length up to 4 m The VEGACAP 64 is a point level sensor for non-abrasive liquids and bulk solids. The rod probe is fully insulated and due to its construction is particularly suitable for viscous and adhesive products. Your benefit Reduced number of cleaning cycles through measurement insensitive to buildup Long lifetime and low maintenance requirement through robust construction Reliable measurement with strong buildup through optimized construction Process temperature -50 ... 200 °C Process pressure -1 ... 64 bar Version PTFE insulation Materials, wetted parts PTFE 316L Alloy C22 (2.4602) Alloy 400 (2.4360) Steel C22.8 Threaded connection ≥ G¾, ≥ ¾ NPT Flange connection ≥ DN25, ≥ 1" Seal material no media contact Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output Relay (DPDT) Contactless electronic switch Transistor (NPN/PNP) Two-wire Ambient temperature -40 ... 80 °C Scope ATEX / Europe CSA / Canada FM / USA EAC (GOST) / Belarus Explosion protection Intrinsic safety Ex ia Protection through housing St Ex Foodstuffs/Pharma FDA Overfill protection WHG VLAREM II SIL qualification SIL2 Indication Pluggable display module PLICSLED
