Capacitive level switch VEGACAP 67
for bulk materialsaluminumstainless steel

capacitive level switch
capacitive level switch
capacitive level switch
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for bulk materials
Material
aluminum, stainless steel
Mounting
threaded, flange
Other characteristics
high-temperature, precision, IP67, IP66, explosion-proof, IP68, rugged
Process temperature

Max.: 400 °C
(752 °F)

Min.: -50 °C
(-58 °F)

Process pressure

Max.: 16 bar
(232.06 psi)

Min.: 0 bar
(0 psi)

Description

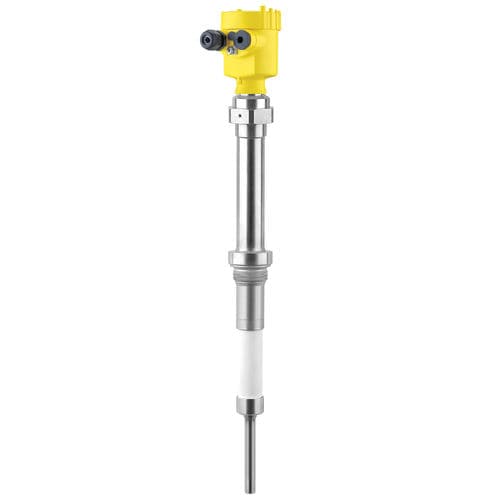

Capacitive high temperature electrode for level detection Rod probe, partly ceramic insulated Application area For bulk solids at high temperatures up to +400° C, Sensor length up to 32 m The VEGACAP 67 point level sensor can be used universally for bulk solids. The probe is designed for high temperature applications. Your benefit High flexibility through shortenable probe Long lifetime and low maintenance requirement through robust mechanical construction Universal use in bulk solids through wide temperature range Process temperature -50 ... 400 °C Process pressure -1 ... 16 bar Version Ceramic insulated cable probe Ceramic insulated cable probe with crimping sleeve Ceramic insulated rod probe Materials, wetted parts 316L Ceramic 316 Threaded connection ≥ G1½, ≥ 1½ NPT Flange connection ≥ DN50, ≥ 2" Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output Relay (DPDT) Contactless electronic switch Transistor (NPN/PNP) Two-wire Ambient temperature -40 ... 80 °C Approvals Explosion protection Indication Pluggable display module PLICSLED
