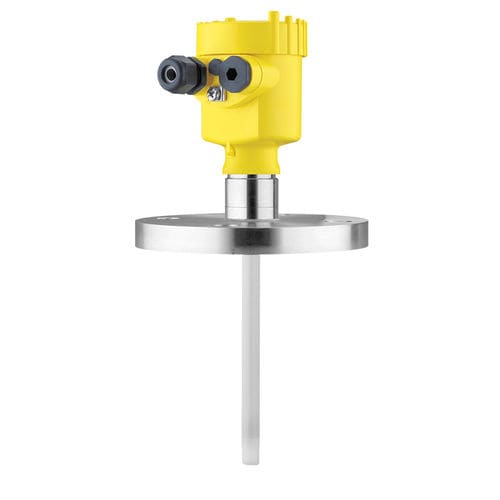

Capacitive level switch VEGACAP 63
for liquidsfor bulk materialsthreaded

capacitive level switch
capacitive level switch
capacitive level switch
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for liquids, for bulk materials
Mounting
threaded, flange
Other characteristics
stainless steel, precision, aluminum, PTFE, IP67, IP68, IP66, ATEX, intrinsically safe
Process pressure

Min.: 0 bar (0 psi)

Max.: 64 bar (928.24 psi)

Process temperature

Min.: -50 °C (-58 °F)

Max.: 200 °C (392 °F)

Description

Capacitive rod probe for level detection Rod probe, fully PE or PTFE insulated Application area For liquids and bulk solids, non-abrasive, Sensor length up to 6 m The VEGACAP 63 point level sensor can be used universalle for the measurement of non-abrasive liquids and bulk solids. The rod probe is fully insulated and the proven mechanical construction offers high functional safety. Your benefit Simple planning due to variable switching point Savings through simple mounting and setup Long lifetime and low maintenance requirement through robust mechanical construction Process temperature -50 ... 200 °C Process pressure -1 ... 64 bar Version PE insulation PE insulation and concentric tube PTFE insulation PTFE insulation with screening tube PN1 PTFE insulation with screening tube PN16 PTFE insulation with screening tube PN40 PTFE insulation and concentric tube Materials, wetted parts PTFE 316L Alloy C22 (2.4602) Alloy 400 (2.4360) PE Steel C22.8 Threaded connection ≥ G½, ≥ ½ NPT Flange connection ≥ DN25, ≥ 1" Seal material no media contact Housing material Plastic Aluminium Stainless steel (precision casting) Stainless steel (electropolished) Protection rating IP66/IP68 (0,2 bar) IP66/IP67 IP66/IP68 (1 bar) Output Relay (DPDT) Contactless electronic switch Transistor (NPN/PNP) Two-wire Ambient temperature -40 ... 80 °C Explosion protection Intrinsic safety Ex ia Protection through housing St Ex Foodstuffs/Pharma FDA Overfill protection WHG VLAREM II SIL qualification SIL2 Indication Pluggable display module PLICSLED
