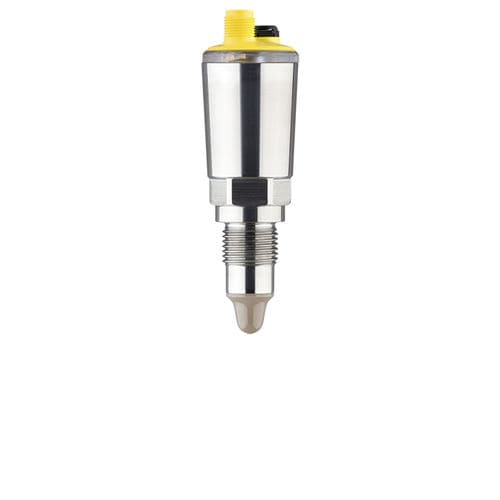

Capacitive level limit switch VEGAPOINT 21

for liquidsfor the food industryfor the pharmaceutical industry

Compact capacitive limit switch For the detection of water-based liquids Application area From DK > 1.5, from thread ½", universal connection G1" for hygiene adapter, M12, valve plug, transistor output, IO-Link, wireless operation, Ex and hygiene approvals VEGAPOINT 21 is a low-cost limit switch for the detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application. With IO-Link, it offers continuous digital data transmission. Your benefit Coloured 360° switching status display, adjustable Easy integration into control systems through IO-Link communication Low-cost limit switch with smallest installation dimensions Process temperature -40 ... 115 °C Process pressure 0 ... 25 bar Materials, wetted parts 316L PEEK Threaded connection ≥ G½, ≥ ½ NPT Hygenic fittings Clamp ≥ 2", DN50 - DIN32676, ISO2852 Clamp ≥ 1" - DIN32676, ISO2852 Clamp ≥ 1½" - DIN32676, ISO2852 Slotted nut ≥ 1½", ≥ DN40 - DIN 11851 Slotted nut ≥ DN25 - DIN 11851 Slotted nut ≥ DN32 - DIN 11851 Seal material EPDM FKM Protection rating IP66/IP67 IP69 Output Transistor (NPN/PNP) IO-Link Ambient temperature -40 ... 70 °C Adjustment PC, PACTware and DTM Smartphone / Tablet / PC via Bluetooth Indication 360° switching status indication
