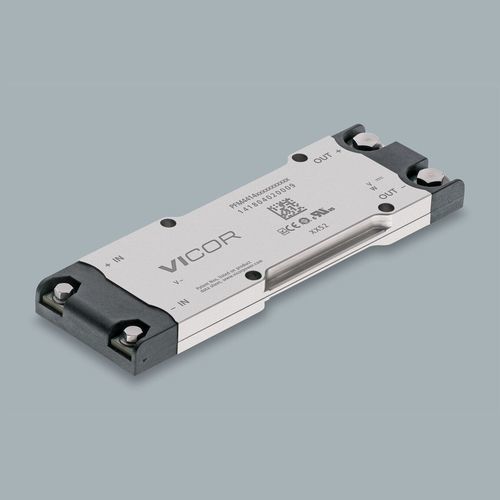

Industrial AC-DC converter PFM4414VB6M24D0CA0

for telecom applications

Product overview
PFM4414VB6M24D0CA0 is part of the PFM™ Isolated AC-DC Converter with PFC family. 4414 VIA package with a compact, low-profile chassis/PCB-mount form factor. Provides 24V output at up to 400 W across a wide AC input range.

Key specifications

• Input Voltages: 85 V – 264 V AC
• Output Voltage: 24 V
• Output Power: 400 W
• Package: 4414 VIA package
• Package dimensions: 4.35 x 1.4 x 0.37 in / 110.55 x 35.54 x 9.3 mm
• Part Number: PFM4414VB6M24D0CA0
• Lead time: 40 weeks
• Minimum order quantity: 1

Product features

• Small size, low profile
• Ruggedized autoranger input
• Double-sided thermal housing for improved heat dissipation
• Requires only a few external components (rectifier, fuse, MOV, hold-up capacitors)
• Integrated filtering, transient protection and inrush protection
• Active Power Factor Correction (PFC) typically > 0.95 under most line/load conditions (filter dependent)
• 400 W available across the full input voltage range
• Chassis mount or PCB mount packaging options
• Compatible with Vicor POL buck and buck-boost regulators for simple wall-plug-to-POL designs

Options / Configurable items

• Mounting Style: Board mount (short pin / long pin) or Chassis mount (Chassis mount selected)
• Product Grade: C (–20 to 100°C) or T (–40 to 100°C)
• Control Interface: Always On

Pricing (MSRP)
Quantity — MSRP
1+ — $1,023.04
10+ — $812.81
25+ — $741.70
100+ — $695.67

Distributor stock (as listed)
Updated Dec. 31, 2025 11:30 a.m. EST
Arrow: 0
Avnet: 0
Digi-Key: 0
Mouser: 0

Reference materials (available)

• Data Sheet
• Application Note AN:039 — Thermal Management for VIA™ and ChiP™ Modules
• Safety approvals: cURus (UL 60950-1, CSA 60950-1), EN/UL/CSA 62368-1, CE Mark (LVD & RoHS), CB Certificate (IEC 62368-1)
• Mechanical drawings and CAD models (2-D/3-D)

Technical specifications

• Part Number: PFM4414VB6M24D0CA0
• Product family / series: PFM™
• Input voltage range: 85 V – 264 V AC
• Output voltage: 24 V
• Maximum output power: 400 W
• Package: 4414 VIA
• Typical package dimensions: 4.35 x 1.4 x 0.37 in / 110.55 x 35.54 x 9.3 mm
• Mounting options: Chassis mount (LUG) or PCB mount (short pin / long pin)
• Thermal: Double-sided thermal housing
• PFC: Active PFC, typically > 0.95 (filter dependent)
• Required external components: rectifier, fuse, MOV, hold-up capacitors
• Lead time: 40 weeks
• Minimum order quantity: 1
• MSRP (1+): 1,023.04 USD
• Product grades: C (–20 to 100°C); T (–40 to 100°C)
• Control interface: Always On
• Safety approvals: cURus, EN/UL/CSA 62368-1, CE Mark (LVD & RoHS), CB Certificate (IEC 62368-1)
