Compact AC-DC converter PFM™

Overview

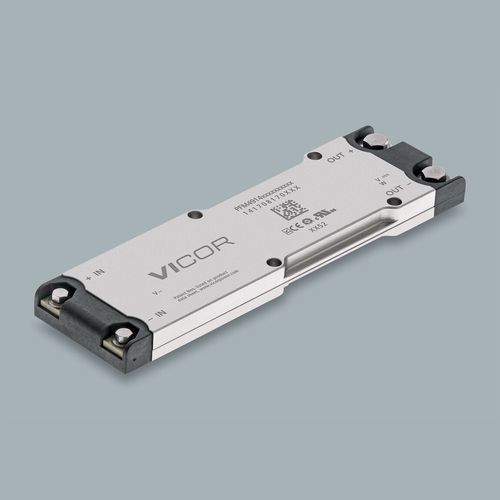

The PFM4914VB6M48D0CA0 belongs to the PFM™ family of isolated AC-DC converters with integrated Active Power Factor Correction (PFC). It uses a low-profile 4914 VIA package for chassis or PCB mounting and delivers 400 W across the full input range (85–264 VAC). Typical PFC performance is >0.95 depending on filter and load. Minimal external components are required for fast wall-plug-to-POL designs when combined with Vicor POL buck and buck-boost regulators.

Key specifications

• Input voltage range: 85 V – 264 V AC
• Output voltage: 48 V
• Output power: 400 W (full input range)
• Package: 4914 VIA; dimensions 124.77 x 35.54 x 9.3 mm
• Mounting options: chassis mount or PCB mount (long pin / short pin / lug)
• Active PFC: typically >0.95 (filter dependent)
• Ruggedized autoranger and double-sided thermal housing
• Requires minimal external components (rectifier, fuse, MOV, hold-up caps)
• Product grades: C (–20 to 100°C) or T (–40 to 100°C)
• Control interface: Always On (option available)

Product features

• Low-profile, compact 4914 VIA package
• Integrated filtering, transient and inrush protection
• Ruggedized autoranger for wide input-range operation
• Double-sided thermal housing for improved heat dissipation
• Designed for simple wall-plug-to-POL topologies with Vicor POL regulators
• Available in chassis or PCB mount variants

Pricing (MSRP)
Quantity | MSRP (USD)
1+ | $1,021.98
10+ | $811.96
25+ | $740.94
100+ | $694.95

Reference materials

• Data sheet
• Application note AN:039 – Thermal Management for VIA™ and ChiP™ Modules
• Safety approvals / certificates (cURus, TUV/UL, CE Mark, CB Certificate)
• Mechanical drawings and 2D/3D models (IGS, STEP)

Mechanical & packaging
4914 VIA package; dimensions 4.91 x 1.4 x 0.37 in / 124.77 x 35.54 x 9.3 mm. Mechanical drawings and CAD models available for design integration.

Safety & certifications

• cURus
• TÜV / UL / CSA standards
• CE Marking and applicable directives
• CB Certificate

Supply & lead time
Lead time shown on the page: 40 weeks. Minimum order quantity: 1. Distributor inventory and lead-times should be verified on the product page.

Technical specifications

• Part number: PFM4914VB6M48D0CA0
• Product family: PFM™
• Model denomination: PFM4914
• Input: 85–264 VAC
• Output: 48 V
• Rated output power: 400 W
• Package: 4914 VIA
• Dimensions: 124.77 x 35.54 x 9.3 mm (4.91 x 1.4 x 0.37 in)
• Mounting styles: Board Mount Long Pin, Board Mount Short Pin, Chassis Mount (Lug)
• Operating grade: C (–20 to 100°C) or T (–40 to 100°C)
• Typical features: Active PFC (>0.95 typical), integrated filtering, transient/inrush protection, autoranger, double-sided thermal housing
• Minimum order quantity: 1
• Lead time example: 40 weeks
