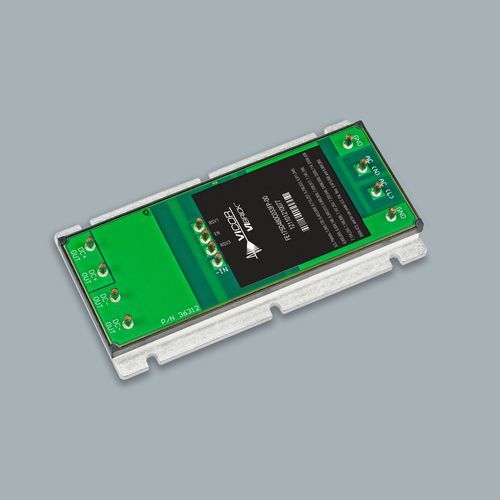

Compact AC-DC converter FE175D480x033FP-00

Overview
The AC Front-End Module provides a complete AC-DC PCB-mounted solution in a low-profile package (9.55 mm above the board). The module simplifies power-system design by integrating input filtering, rectification, transient protection, agency safety approvals and simplified thermal management. It delivers consistently high efficiency across line, load and temperature.

Notice
This product is not recommended for new designs; for new designs refer to PFM™ isolated AC-DC converters with PFC.

Key features

• Isolated AC-DC converter with Power Factor Correction (PFC)
• Integrated input filtering, rectification and transient protection
• Low-profile: 9.55 mm height above PCB
• Integrated agency safety approvals and simplified thermal management
• Consistently high efficiency over line, load and temperature
• 48 V isolation and regulated output with safe, low-voltage energy storage
• Integrated solution that streamlines design and reduces time to market

Resources

• Family overview document (PDF)
• Evaluation board user guide (UG)
• Product outline drawing and mechanical files (PDF, DXF)
• Safety approval certificates (UL, TÜV/EN/CSA), CE and CB documentation
• 3‑D model files (IGS, STEP)

Technical specifications

• Form factor: PCB-mounted AC-DC front-end module
• Package height: 9.55 mm above board (low-profile)
• Isolation: 48 V isolation
• Output: regulated output with safe, low-voltage energy storage
• Power factor: integrated PFC (isolated converter with PFC)
• Integrated: input filtering, rectification, transient protection
• Thermal: simplified thermal management via module design
• Agency approvals: UL 60950-1; TÜV / EN 62368-1; UL 62368-1; CSA 62368-1; CE Mark (Low Voltage Directive and RoHS); CB Certificate (IEC 62368-1)
