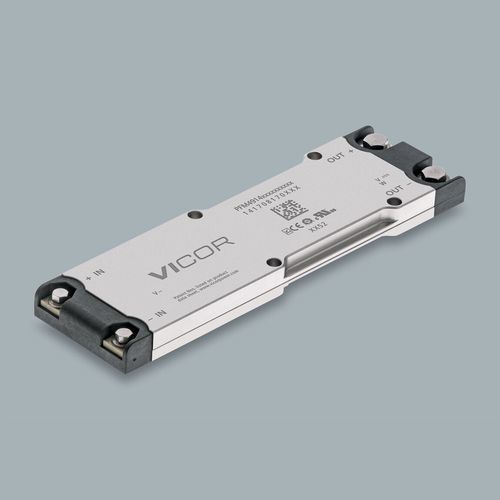

Industrial AC-DC converter PFM™

for telecom applications

Overview
PFM4914VB6M24D0CA0 is a PFM™ Isolated AC-DC Converter with active Power Factor Correction (PFC) delivering 400 W output power in a 4914 VIA package. Small, low-profile design available in chassis-mount or PCB-mount packaging, designed as a wall-plug-to-POL solution requiring only a few external components (rectifier, fuse, MOV, hold-up capacitors).

Key product features

• Small size, low profile
• Ruggedized Autoranger
• Double sided thermal housing
• Easy-to-use solution requires only a few external components (rectifier, fuse, MOV, hold-up caps)
• Integrated filtering, transient protection, inrush protection
• Active Power Factor Correction (PFC) exceeding 0.95 at most line/load conditions (filter dependent)
• 400 W available over entire input voltage range
• Chassis mount or PCB mount packaging options
• Small and simple wall-plug-to-POL design with Vicor POL buck and buck-boost regulator products

Package & mechanical
4914 VIA package; typical external package dimensions: 4.91 x 1.4 x 0.37 in / 124.77 x 35.54 x 9.3 mm.

Ordering & production information
Part Number: PFM4914VB6M24D0CA0
Lead time: 40 weeks
Minimum order quantity: 1
Distributor stock (as listed): Arrow: 0, Avnet: 0, Digi-Key: 0, Mouser: 0

Pricing (MSRP)
Quantity 1+ : $1,059.00
Quantity 10+ : $841.38
Quantity 25+ : $767.77
Quantity 100+ : $720.12

Reference materials & documentation available
Data sheet and application notes available for the product (datasheet and application note referenced on product page).

caractéristiques / spécifications techniques

• Product family / series: PFM™
• Nom commercial (model/series): PFM™
• Part number: PFM4914VB6M24D0CA0
• Input voltages: 85 V – 264 V
• Output voltage: 24 V
• Output power: 400 W
• Package: 4914 VIA package
• Package dimensions: 4.91 x 1.4 x 0.37 in / 124.77 x 35.54 x 9.3 mm
• Mounting styles: Chassis Mount or Board Mount (Lug/Pin options)
• Thermal: double sided thermal housing
• Power factor correction: Active PFC (>0.95 typical at most conditions, filter dependent)
• Typical external components required: rectifier, fuse, MOV, hold-up capacitors
• Lead time (as shown): 40 weeks
• Minimum order quantity: 1
